● A new generation of vickers hardness tester integrated design of hardness tester and computer;
● Testing parameters can be selected on the panel computer. With touching screen, it operates quickly and conveniently and displays clearly and intuitively.
● With CCD image acquisition system, it can show dynamic indentation image, lock the image and automatically calculate the Vickers hardness value.
● High measuring accuracy and stable performance, avoiding human errors
● With Windows 7 operating system, it has all functions of computer. Also can be connected to the monitor, printer and other output devices.
● With three measuring objectives, automatic recognition and shifting between the objective and the indenter. The lifting screw adopts the worm and gear structure for smooth transmission.
● Automatically save the measuring data, generate the hardness-depth curve and save as WORD document.
● With built-in CCD image automatic measuring system, the indentation displays clearly and intuitively and the hardness value can be automatically got.
● Digital X-Y Anvil makes the measurement more accurate, and it can be equipped with X-Y automatic test table (optional) to realize the automation of Vickers hardness testing.

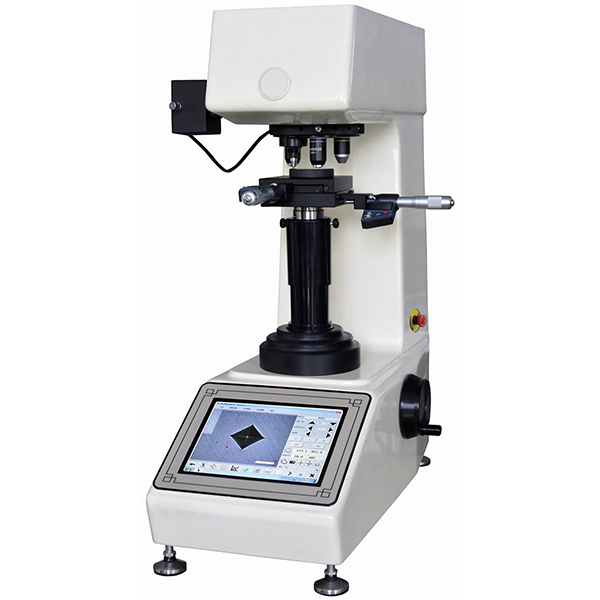

MVI-1000A micro vickers hardness tester Technical Specifications:
|
Product Name |
Intelligent Digital Vickers Hardness Tester |
|
|
Model |
MVI-1000A |
|
|
Testing Force |
Kgf |
10、25、50、100、200、300、500、1000 |
|
N |
0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80 |
|
|
Testing Range |
1HV~2967HV |
|
|
Lens& Indenter Switch |
Auto-turret |
|
|
Loading Control |
Automatic (Loading, Dwell, Unloading) |
|
|
Magnification of Microscope |
Observation:10x; Measurement:20x |
|
|
Digital Eyepiece |
Magnification:10x |
|
|
Objective |
Magnification:10x,20x,40x |
|
|
Min.Test Unit |
0.0625 μm, 0.125 μm, 0.25 μm |
|
|
Dwell Time |
Adjustable 0~60s |
|
|
Digital Camera Pixel |
1.3 million |
|
|
Hardness Indication |
1HV/Computer Display |
|
|
Illumination |
Adjustable LED |
|
|
Max. Height of Specimen |
180mm |
|
|
Instrument Throat |
130mm |
|
|
Power Supply |
AC220V/50Hz;110V/60Hz |
|
|
Dimension(LxWxH) |
560 x335 x635mm |
|
|
Packing Dimension |
630 x460 x710mm |
|
|
Gross/Net Weight |
60Kg/45Kg |
|
|
Execution Standard |
GB/T4340.2, EN-ISO6507, ASTME10-08, ASTME-384 |
|
MVI-1000A Micro Vickers Hardness Tester Standard Packing List:
|
Packing List |
Packing List |
Packing List |
|
Vickers Indenter |
Vickers Hardness Block |
Accessories Box |
|
Built-in 10x Objective |
10x Digital Eyepiece |
Anti-dust Cover |
|
Built-in 20x Objective |
V-Shape Anvil/Mini-printer |
Level Screw/Fuse |
|
Built-in 40x Objective |
Halogen Lamp |
Instrument Manua/Power Cable |
|
Digital X-Y Test Stage |
Big Test Anvil |
Screwdriver/Spanner |
MVI-1000A Micro Vickers Hardness Tester Optional Accessory:
|
Optional Items |
Optional Items |
Optional Items |
|
Knoop Indenter |
Hardness Testing Software |
15x Eyepiece |
|
Hardness Blocks |
CCD measuring System |
Metallographic Equipments |
