Home > Material Preparing & Testing > Hardness Tester > HR-45E Electric Motorized Superficial Rockwell Hardness Tester

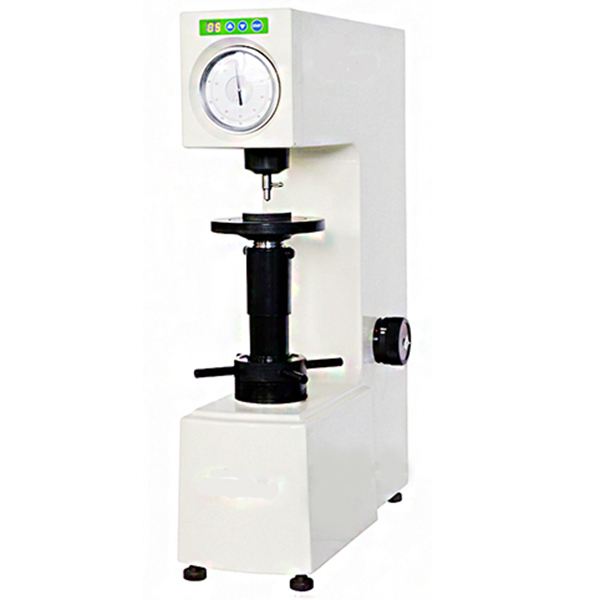

HR-45E Electric Motorized Superficial Rockwell Hardness Tester

Category： Hardness Tester
Views：1184
Analogue Display
Adjustable 1-60s Dwell Time
0.5HR Resolution
Electric Loading Control
Product description：Electric Motorized Superficial Rockwell Hardness Tester
Inquiry

HR-45E Electric Motorized Superficial Rockwell hardness tester Instrument Description:

●HR-45E is an effective electronic rockwell testing machine with high accuracy, reliability and durability, it is applied at the workshops and measurement departments for determining the Rockwell hardness of the ferrous and non-ferrous metals.
●HR-45E analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution.
●HR-45E dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than manual one
●HR-45E force knob adopts the metal material to replace the plastic, it improves the instrument using-life a lot.
●HR-45E loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum.
●HR-45E intenter protector is available to improve the using lifetime of indenter.

HR-45E Electric Motorized Superficial rockwell hardness tester Technical Specifications:

Product Name	Electronic Superficial Rockwell Hardness Tester
Model	HR-45E
Rockwell Scales	HR15N,HR30N,HR45N,HR15T,HR30T,HR45T
Preliminary Test Force	3Kgf(29.42N)
Test Force	15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N)
Dwell Time	Adjustable 1-60s
Hardness Indication	Analogue Display
Resolution	0.5HR
Loading Control	Electric
Max. Height Of Specimen	175mm
Instrument Throat	140mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630 x440 x960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

HR-45E Electric Motorized Superficial Rockwell Hardness Tester Standard Packing List:

Packing List	Packing List	Packing List
Instrument Main Body	Anti-dust Cover	Weight 1/2/3
Hardness Block HR30T	Cone Diamond Indenter	Instrument Fuse
Hardness Block HR15N	Ø 150mm Flat anvil	Power Cable
Hardness Block HR30N	Ø 40mm V-shape Anvil	Accessories Box
Ø1.588mm Ball Indenter	Ø 60mm Flat Anvil	Instrument Manual

HR-45E Electric Motorized Superficial Rockwell Hardness Tester Optional Accessories:

Optional Items	Optional Items	Optional Items
1/8”Steel Ball Indenter	Ø1/8“ Steel Ball	Ø 100mm Flat Anvil
1/4”Steel Ball Indenter	Ø 1/4“ Steel Ball	Small Flat Anvil
1/2”Steel Ball Indenter	Ø 1/2“ Steel Ball	Ø 1/16“ Steel Ball
