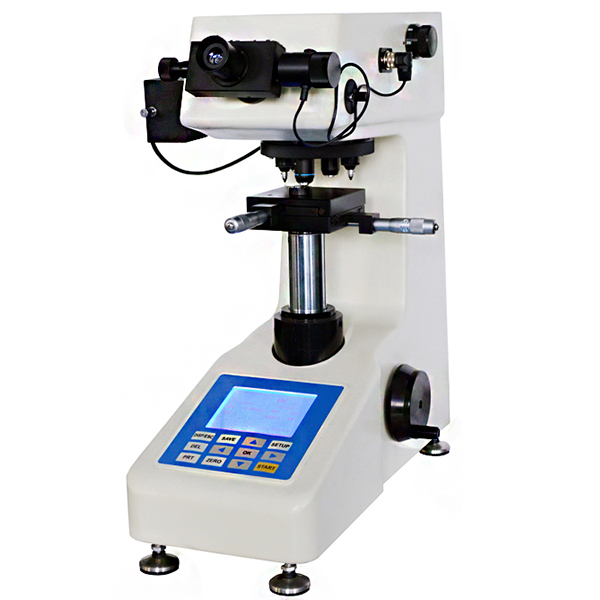

MVK-1000A Digital Micro Knoop Hardness Tester

Category： Hardness Tester
Views：1248
Vickers/Knoop Test Mode
Rs232/Mini-printer
Automatic (Loading, Dwell, Unloading)
GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384
Product description：Digital Micro Knoop Hardness Tester
Catolog Download Inquiry

MVK-1000A Micro Knoop hardness tester Instrument Description:

●MVK-1000A is a precision micro Vickers hardness testing machine integrated the technology of advanced optics, mechanics and computer.
●MVK-1000A with Dual Indenter ,Vikcers indenter and Knoop Indenter
●MVK-1000A s equipped with a large LCD screen, the operation is more directly and clearly.
●MVK-1000A can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement.
●MVK-1000A can save and revise the date, record the measuring results, compute the data, outputting the information with the printer.
●MVK-1000A hardness conversion among 17 hardness scales, and linking to PC in RS 232 interface and cable.

MVK-1000A Micro Knoop Hardness Tester Technical Specifications:

Product Name		Digital Auto-turret Micro Vickers Hardness Tester
Model		MVK-1000A
Testing Force	gf	10、25、50、100、200、300、500、1000
	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
Indentation Measurement		Digital Encoder Measurement
Test Mode		Vickers/Knoop
Output Data		Rs232/Mini-printer
Loading Control		Automatic (Loading, Dwell, Unloading)
Magnification of Microscope		Observation:10x; Measurement:40x
Magnification on of Eyepiece		10x Eyepiece
Dwell Time		Adjustable 5~60s
Testing Range		1HV~2967HV
Auto Hardness Conversion		HRA ,HRB,HRC,HV,HK,HBW etc
X-Y Anvil		Size:100x100mm; Travel:25 x25mm; Resolution:2um
Illumination		Halogen light-source
Max. Height of Specimen		100mm
Instrument Throat		98mm
Power Supply		AC220V/50Hz;110V/60Hz
Dimension(LxWxH)		480 x305x545mm
Packing Dimension		500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Execution Standard		GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384

MVK-1000A Micro Knoop Hardness Tester Standard Packing List:

Packing List	Packing List	Packing List	Packing List
Vickers Indenter	Objectives 40x	Accessories Box	Weights
Hardness Block HV0.2	Objectives 10x	Anti-dust Cover	Thin-piece Clamp
Hardness Block HV1	X-Y Anvil/Mini-printer	Level Screw	Filament Clamp
Fuse/Power Cable	Eyepiece10x	English Manual	Flat Clamp
Knoop Block	Knoop Indenter	Halogen lamp	Gradienter
