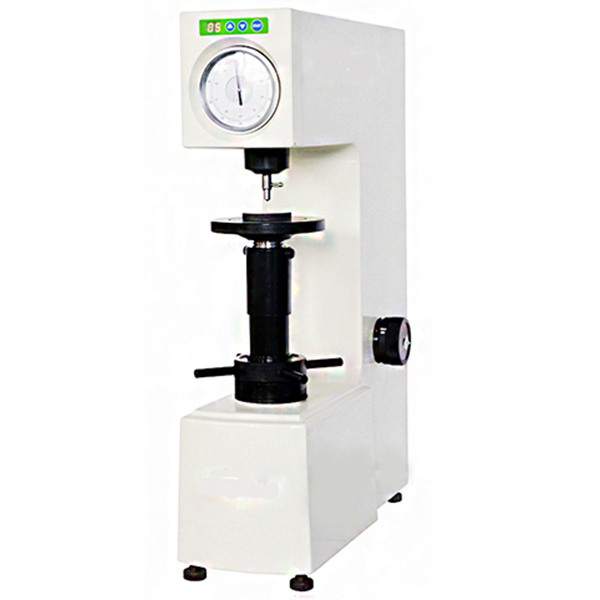

HR-150E Electric Motorized Rockwell Hardness Tester

Category： Hardness Tester
Views：1559
Rockwell Scales:HRA,HRB,HRC
Hardness Indication:Analogue Display
Loading Control:Electric
Execution Standard:GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18
Product description：Electric Motorized Rockwell Hardness Tester
Inquiry

HR-150E Electric Motorized Rockwell hardness tester Instrument Description:

●Hardness is one of the important criteria of the mechanical functions of materials, and the hardness test is the important way to judge the quality of the metallic materials or parts.
●As the metallic hardness has mutual correspondent relations with other mechanical functions, the majority of the metallic materials can calculate the other mechanical functions such as the strength, the fatigue, the evolutionary change and the degree of being worn out,which can be approximately inferred from the hardness shown by the test.
● HR-150E analogue gauge resolution is 0.5HR, it is useful to improve the reading accuracy than traditional 1HR resolution.
● HR-150E dwell time from 1to 60s can be setup by the “time key” on the panel , it is much convenient than the setup on the manual hardness tester.
● HR-150E loading, dwell and unloading is buffering by oil pump, it eliminate the operator’ s tiredness.
● HR-150E force knob adopts the metal material to replace the plastic, it improves the instrument using-life a lot.
● HR-150E loading, dwell and unloading is buffering by electronic motor automatically ,doesn’t need the operator to handle it , it eliminates the human operation error maximum.

● HR-150E indenter protector is available to improve the using lifetime of indenter.

HR-150E Electric rockwell hardness tester Technical Specifications:

Product Name	Electronic Rockwell Hardness Tester
Model	HR-150E
Rockwell Scales	HRA,HRB,HRC
Preliminary Test Force	10Kgf(98.07N)
Test Force	60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N)
Dwell Time	Adjustable 1-60s
Hardness Indication	Analogue Display
Resolution	0.5HR
Loading Control	Electronic
Max. Height Of Specimen	175mm
Instrument Throat	165mm
Dimension(LxWxH)	520 x215 x700mm
Packing Dimension	630440960mm
Gross/Net Weight	120Kg/90Kg
Execution Standard	GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18

HR-150E Electric Rockwell Hardness Tester Standard Packing List:

Packing List	Packing List	Packing List
Instrument Main Body	Ø1.588mm Ball Indenter	Weight B
Hardness Block (57-70) HRC	Ø 150mm Flat anvil	Weight C
Hardness Block (20-33) HRC	Ø 40mm V-shape Anvil	Accessories Box
Hardness Block (85-100) HRB	Ø 60mm Flat Anvil	Anti-dust Cover
Cone Diamond Indenter	Weight A	Instrument Manual

HR-150E Electric Rockwell Hardness Tester Optional Accessories:

Optional Items	Optional Items	Optional Items
1/8”Steel Ball Indenter	Ø1/8“ Steel Ball	Ø 100mm Flat Anvil
1/4”Steel Ball Indenter	Ø 1/4“ Steel Ball	Small Flat Anvil
1/2”Steel Ball Indenter	Ø 1/2“ Steel Ball	Ø 1/16“ Steel Ball
