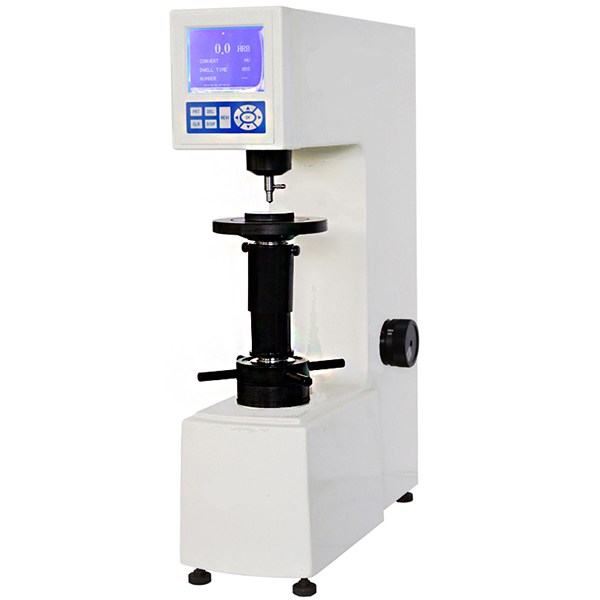

●HR-45D is a half automatic and intelligent hardness testing machine, except to lift up the anvil to touch the specimen and select the test force: 15Kgf(147.1N), 30Kgf(294.2N) and 45Kgf(441.3N) in hand-knob manually, the other operations are entirely automatic.
●The testing force, the process of loading, dwell and unloading, the hardness testing value, and the corresponding converted scale are displayed on LCD screen automatic.
●HR-45D system will remind the operator to select the corresponding testing force and indenter after scales choosing, and the automatic hardness testing and digital 0.1HR resolution display avoids the man-made error and enhance the measuring accuracy.
●HR-45D force knob adopts the metall material to replace the plastic material, it improves the instrument using-life greatly.
●HR-45D can make the hardness conversion among 14 hardness scales: HRA, HRB,HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, it doesn’t need the operator to trace and check the fussy hardness comparison table again.
●HR-45D saves, displays and analyzes the value of maximum, minimum, average and tolerance automatically, the mini-printer prints the main measuring data automatically, and it supports PC communication in RS 232 interface and cable.
HR-45D Digital Superficial rockwell hardness tester Technical Specifications:
|
Product Name |
Digital Superficial Rockwell Hardness Tester |
|
Model |
HR-45D |
|
Rockwell Scales |
HR15N,HR30N,HR45N,HR15T,HR30T,HR45T |
|
Preliminary Test Force |
3Kgf(29.42N) |
|
Test Force |
15Kgf(147.1N),30Kgf(294.2N),45Kgf(441.3N) |
|
Dwell Time |
Adjustable 1-60s |
|
Hardness Indication |
Digital LCD Display |
|
Resolution |
0.1HR |
|
Loading Control |
Automatic |
|
Data Output |
RS 232/Printer |
|
Auto Hardness Conversion |
HRC,HRB,HRA,HK,HV,HBW |
|
Max. Height Of Specimen |
175mm |
|
Instrument Throat |
165mm |
|
Dimension(LxWxH) |
520 x215 x700mm |
|
Packing Dimension |
630 x440 x960mm |
|
Gross/Net Weight |
120Kg/90Kg |
|
Execution Standard |
GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18 |
HR-45D Digital Superficial Rockwell Hardness Tester Standard Packing List:
|
Packing List |
Packing List |
Packing List |
|
Instrument Main Body |
Ø1.588mm Ball Indenter |
Weight 1/2/3 |
|
Hardness Block HR30T |
Anti-dust Cover |
Power Cable |
|
Hardness Block HR15N |
Ø 150mm Flat anvil |
Mini-Pinter |
|
Hardness Block HR30N |
Ø 40mm V-shape Anvil |
Accessories Box |
|
Cone Diamond Indenter |
Ø 60mm Flat Anvil |
Instrument Manual |
HR-45D Digital Superficial Rockwell Hardness Tester Optional Accessories:
|
Optional Item |
Optional Item |
Optional Item |
|
1/8”Steel Ball Indenter |
Ø1/8“ Steel Ball |
Ø 100mm Flat Anvil |
|
1/4”Steel Ball Indenter |
Ø 1/4“ Steel Ball |
Small Flat Anvil |
|
1/2”Steel Ball Indenter |
Ø 1/2“ Steel Ball |
Ø 1/16“ Steel Ball |
