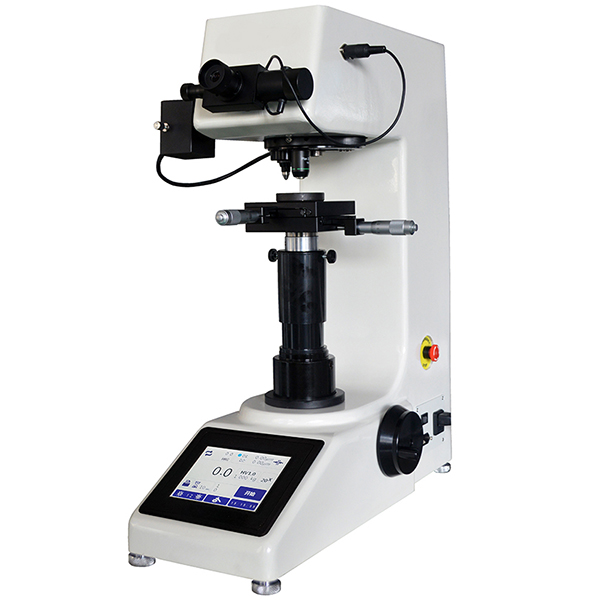

● A new and high-tech product combining the optical, mechanical and electronic techniques.
● It adopts the close-loop force sensor to replace the traditional quality weight, this innovative design makes the instrument more accurate and stable.
● It applies computer software program, high-resolution optical measuring system and photoelectric sensor. Through Key-input on the panel, it can adjust brightness of light source, hardness converse comparison, dwell time, file number and store, etc.
● LCD screen displays test method, test force, length of diagonal, hardness value. It is easy to use with high precision.
● Equipped with auto-turret, Halogen Light-source and Built-in Mini-printer as the standard delivery.
● Full digital hardness testing instrument, don’t need operator to read the length of diagonal, just press the sensor key.
● It can be equipped with CCD indentation automatically measuring device or video measuring device.
● It is suitable for the testing Vickers hardness value of the micro and thin pieces, the parts with the strengthening layer, heat treating and permeated and coated plane surface, the crisp materials such as the agate, glass, ceramics
● An ideal hardness measuring instrument for the scientific research institutes, the universities, the industrial production units and the metallographic institutes.
HVT vickers hardness tester Technical Specifications:
|
Product Name |
Digital Vickers Hardness Tester |
|||||
|
Model |
HVT-5M/5A |
HVT-10M/10A |
HVT-30M/30A |
HVT-50M/50A |
||
|
Testing Force |
Kgf |
0.3,0.5,1,2,2.5,3,5 |
0.3,0.5,1,2,2.5,3,5,10 |
0.5,1,2,2.5,3,5,10,20,30, |
1,2,2.5,3,5,10,20,30,50 |
|
|
N |
2.94,4.9,9.8,19.6, |
2.94,4.9,9.8,19.6, |
4.9,9.8,19.6,24.5, |
9.8,19.6,24.5,29.4, |
||
|
Testing Range |
8HV0.3~ 2900HV5 |
8HV0.3~ 2900HV10 |
8HV0.5~ 2900HV30 |
8HV1~ 2900HV50 |
||
|
Lens&Indenter Switch |
Manual-turret(MHV-5/10/30//50) Auto-turret(MHV-5Z/10Z/30Z/50Z) |
|||||
|
Loading Control |
Automatic( Loading, Dwell and Unloading) |
|||||
|
Data Output |
RS232/Mini-printer |
|||||
|
Auto Hardness Conversion |
HRA、HRB、HRC、HV、HK、HBW、etc |
|||||
|
Microscope Magnification |
HVT-5M/5A |
Observation:20x, Measurement:40x |
||||
|
HVT-10M/10A |
Observation:10x, Measurement:40x |
|||||
|
HVT-30M/30Z/50M/50A |
Observation:10x, Measurement:20x |
|||||
|
Eyepiece |
10x |
|||||
|
Dwell Time |
0~60s (5 seconds as a unit) |
|||||
|
Hardness Indication |
Touch Screen Display |
|||||
|
Illumination |
Halogen light-source |
|||||
|
Max Test Height |
170mm |
|||||
|
Test Throat |
130mm |
|||||
|
Power Supply |
AC220V/50Hz;110V/60Hz |
|||||
|
Dimensions |
530×280×630 mm |
|||||
|
Packing Dimensions |
630x460x710 |
|||||
|
Gross/Net Weight |
50/35kg |
|||||
|
Execution Standard |
GB/T4340.2, EN-ISO6507, ASTME10-08, ASTME-384 |
|||||
HVT Vickers Hardness Tester Standard Packing list:
|
Packing List |
Packing List |
Packing List |
Packing List |
|
Mainframe |
Accessories Box |
Fuses |
X-Y Test Anvil (HV-5/5Z/10/10Z) |
|
10x Eyepiece |
Gradienter |
Power Cable |
Large Test Anvil (HV-30/30Z//50/50Z) |
|
20x Objective |
Screwdriver |
Halogen Lamp |
V-shape Test Anvil (HV-30/30Z/50/50Z) |
|
40x Objective |
Allen Wrench |
Anti-dust Cover |
Mini-printer |
|
10x Objective |
Vickers Indenters /Blocks |
Level Screw |
Instruction Manual |
HVT Vickers Hardness Tester Optional Accessories:
|
Optional Items |
Optional Items |
Optional Items |
|
CCD Image Measuring System |
Filament Clamp |
LCD Monitor |
|
Vickers Measuring Software with Capture card and Dongle |
Flat Clamp |
Medium-Flat Anvil |
|
Thin-piece Clamp |
Hardness Blocks |
|
|
Metallurgical Specimen Cutter |
Metallurgical Specimen Polisher |
Metallurgical Specimen Mounting Press |
