● Precise structure design,load of test force is controlled by sensor.
● Test process is controlled by CPU, automatic switching between objective and indenter. The location of switching adopts mechanical and electronic double matching, makes the location precision more high.
● Apply to the measurement of cast iron, nonferrous metal and alloy material, various annealing, hardening and tempering steel, especially the soft metal such as aluminum, lead, tin etc. .
● 10 level of test force, 13 Brinell hardness test scales, free to choose;
● With three indenters for automatic measurement;With two objectives;
● Automatic switching between the objective and the indenter according to the scale;
● Can preset the test force dwell time and adjust intensity of light source;
● Can show the indentation length, the hardness value and the number of measurements
● Choice of conversion between each scale of hardness values; test result can be printed;
● According to requirements of client, it can be equipped with CCD indentation automatic measuring device or video measuring device.

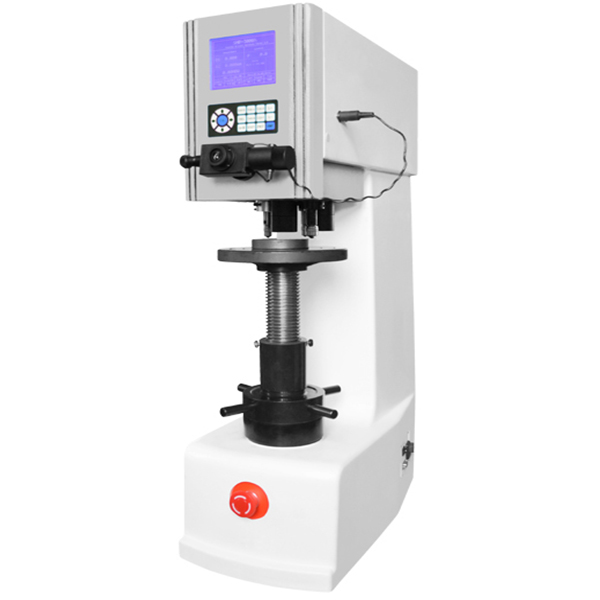

HB-3000A Digital brinell hardness tester Technical Specifications :
|
Product Name |
Digital Brinell Hardness Tester |
|
|
Model |
HB-3000A |
|
|
Testing Force |
62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, |
|
|
612.9N, 980N, 1226N, 1839N, 2452N, |
||
|
Test Force Control |
Closed Loop System |
|
|
Test force applying |
automatic (loading / dwell/ unloading) |
|
|
Applying time of test force |
2~8s |
|
|
Dwell time |
0~60s (5 seconds as an unit) |
|
|
Testing Range |
(8~650) HBW |
|
|
Specification of the indenter |
φ2.5mm,φ10mm, ball indenter |
|
|
Hardness Display |
LCD Display |
|
|
Magnification of Microscope |
20x Mechanic Microscope |
|
|
Max. Height Of Specimen |
260mm |
|
|
Instrument Throat |
150mm |
|
|
Output Data |
RS 232/Printer |
|
|
Auto Hardness Conversion |
HR, HV, HK, etc |
|
|
Power Supply |
AC220V/50Hz;110V/60Hz±5% |
|
|
Dimension(LxWxH) |
(890×535×260) mm |
|
|
Gross/Net Weight |
180Kg/150Kg |
|
|
Execution Standard |
GB/T231.2, JJG150, EN-ISO 6506 |
|
|
Accuracy of Brinell Hardness Testing |
||
|
Hardness Range |
Max. Tolerance |
Repetition |
|
HBW≤ 125 |
≤± 3.5％ |
≤ 3.5％ |
|
125＜HBW≤225 |
≤± 2.5％ |
≤ 3.0％ |
|
HBW＞ 225 |
≤± 2.0％ |
≤ 2.5％ |
HB-3000A Digital Brinell Hardness Tester Standard Packing List:
|
Item |
Description |
Specification |
Quantity |
|
|
No. |
Name |
|||
|
Main Instrument |
1 |
Machine Mainframe |
|
1 piece |
|
2 |
Ball indenter |
φ10、φ5、φ2.5 |
Total 3 pieces |
|
|
3 |
Objective |
1、2 |
Total 2 pieces |
|
|
4 |
Mini-Printer |
|
1 piece |
|
