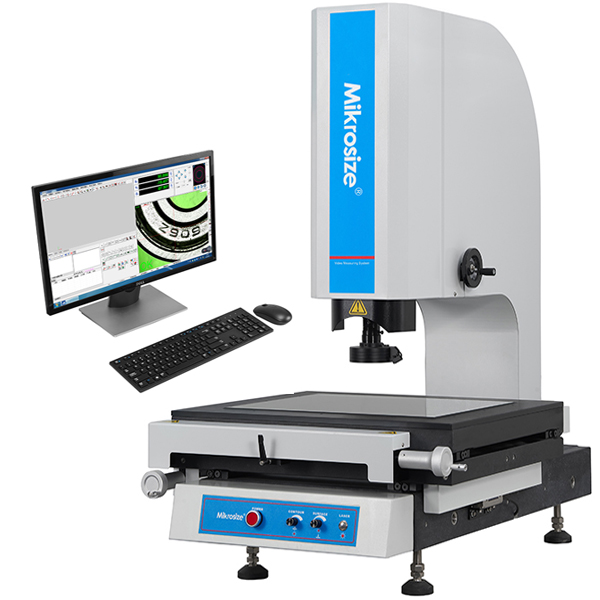

VMA Manual Vision Measuring Machine

VMA Manual Vision Measuring Machine Description:

●Powerful Measuring Software with auto tracing-edge function,multi-output report

●Sub-pixel segmentation technology improves the ability of image boundary resolution.

●The surface cold light source can be used to measure the complex workpiece.

●With laser pointer ,easy to find the specific location of the measured workpiece .

●Stable Granite workbench with “00” Grade.

●German Made High Precision Polish Rod and Bearing

●High Resolution Video System

●Renishaw Measuring Probe is optional for simple 3D purpose.

VMA Manual Vision Measuring Machine Specification:

Product Name	Manual Video Measuring System
2.5D Model	VMA-2010	VMA-3020	VMA-4030	VMA-5040
3D Model	VMA-2010P	VMA-3020P	VMA-4030P	VMA-5040P
X.Y-axis Travel Distance(mm)	200X100	300x200	400x300	500x400
Z-axis Travel Distance(mm)	200
Dimensions（mm）	600X500X920	750x520x980	1000x620x990	1100x950x1660
Net Weight(KG)	120	150	180	360
X,Y-axis Accuracy(μm)	2.5+L/100
Loading Weight of Working Stage	25kg
Image Sensor	TEO 1/3’’Colorful CCD Camera
Objective Lens	Manual Position Zoom Lens
Video Total Magnification	Optic Zoom Lens:0.7~4.5x, Objective Lens:20~148x
Resolution	0.5μm
Working Distance(Standard)	92 mm
Object View	8.1mm～1.3mm
Movement System	X,Y-axis:Polish Rod, Z-axis:T-type Screw Rod
Data Processor	RS-100
Illumination	Surface:8-division LED Cold Light Contour:Adjustable 256-grades LED Cold illumination
Measuring Software	Microsize
Working Environment	Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
	Vibration<0.002g,15Hz
Power Source	AC 100~220V, 50/60HZ, 10A

VMA Manual Vision Measuring Machine Packing List:

Packing List	Packing List	Packing List
Mainframe/Dell PC System	Zoom Lens 0.7X—4.5X	LED Light Source
RS-100 Data Processor	1/3" CCD Camera	Microsize Measuring Software
Linear Scale	Calibration Block/Capture Card	Instruction Manual/Anti-dust Cover
Z axis High Precision Linear Guide Rail	100mm Length Block(3D)	Renihshaw Probe(3D)
