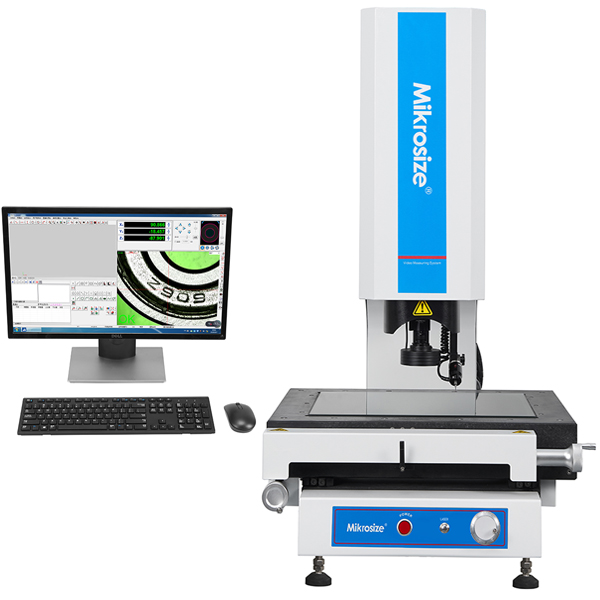

VMA-F Semi-auto Video Measuring System Description:
●Z-axis Auto Focus.
●Powerful Measuring Software with auto tracing-edge function,multi-output report
●Sub-pixel segmentation technology improves the ability of image boundary resolution.
●The surface cold light source can be used to measure the complex workpiece.
●With laser pointer ,easy to find the specific location of the measured workpiece .
●Stable Granite workbench with “00” Grade.
●German Made High Precision Polish Rod and Bearing
●High Resolution Video System
●Renishaw Measuring Probe is optional for simple 3D purpose.
VMA-F Semi-auto video measuring system Specification:
|
Product Name |
Semi-auto Video Measuring System |
|||
|
2.5D Model |
VMA2010-F |
VMA-3020F |
VMA-4030F |
VMA-5040F |
|
3D Model |
VMA2010-FP |
VMA-3020FP |
VMA-4030FP |
VMA-5040FP |
|
X.Y-axis Travel Distance(mm) |
200X100 |
300x200 |
400x300 |
500x400 |
|
Z-axis Travel Distance(mm) |
200 |
|||
|
Dimensions（mm） |
600X500X920 |
750x520x980 |
1000x620x990 |
1100x950x1660 |
|
Net Weight(KG) |
120 |
150 |
180 |
360 |
|
X,Y-axis Accuracy |
2.5+L/100μm |
|||
|
Z-axis |
Auto Focus |
|||
|
Loading Weight of Working Stage |
25kg |
|||
|
Image Sensor |
TEO 1/3’’Colorful CCD Camera |
|||
|
Objective Lens |
Manual Position Zoom Lens |
|||
|
Video Total Magnification |
Optic Zoom Lens:0.7~4.5x, Objective Lens:20~148x |
|||
|
Resolution |
0.5 μm |
|||
|
Working Distance(Standard) |
92 mm |
|||
|
Object View |
8.1mm～1.3mm |
|||
|
Movement System |
X,Y-axis:Polish Rod, Z-axis:T-type Screw Rod,Servomotor |
|||
|
Data Processor |
RS-100 |
|||
|
Illumination |
Surface:8-division LED Cold Light Contour:Adjustable 256-grades LED Cold illumination |
|||
|
Measuring Software |
Microsize |
|||
|
Working Environment |
Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80% |
|||
|
Vibration<0.002g,15Hz |
||||
|
Power Source |
AC 100~220V, 50/60HZ, 10A |
|||
VMA-F Semi-auto Video Measuring System Packing List:
|
Packing List |
Packing List |
Packing List |
|
Mainframe/Dell PC System |
Zoom Lens0.7X—4.5X |
LED Light Source |
|
RS-100 Data Processor |
1/3" CCD Camera |
Measuring Software |
|
Linear Scale/Z- axis Servomotor System |
Calibration Block/Capture Card |
Instruction Manual/Anti-dust Cover |
|
Z axis High Precision Linear Guide Rail |
100mm Length Block(3D) |
Renihshaw Probe(3D) |
Name: Mikrosize
