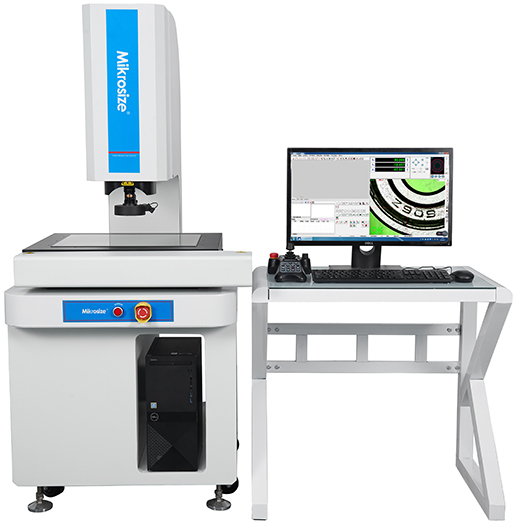

VMC CNC Automatic Video Measuring System Description:
● CNC fully auto close loop control, auto measurement; Integrative Design , convinient for measuring;
● 00” Grade Stable and Reliable Marble base , Ensuring high measure speed, accuracy and precision
● Precision Linear Guide and Grinding Ball Screw, AC servo motor ensures accuracy
● High precision linear scale, resolution is 1um, high accuracy, great stability;
● Manual zoom lens and 1 /2" color high resolution CCD camera;
● Programmable 5 Ring, 8-division LED Surface illumination controlled by software and with memory function
● Contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
● Optional imported touch probe, realize 3D measurement;
VMC CNC Automatic video measuring system Application:
● It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic, mold and other industries.
● It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.
VMC CNC Automatic Video Measuring System Specification：
|
Product Name |
CNC Automatic Video Measuring System |
|||
|
2.5D Model |
VMC-3020 |
VMC-4030 |
VMC-5040 |
|
|
3D Model |
VMC-3020P |
VMC-4030P |
VMC-5040P |
|
|
X,Y-axis Travel |
300x200mm |
400x300mm |
500X400mm |
|
|
Z-axis Travel |
200mm |
|||
|
Dimensions(mm) |
750X520X980 |
1000x620x990 |
1300x750x1000 |
|
|
Max.load Capacity |
25Kg |
25Kg |
25Kg |
|
|
Net Weight |
240Kg |
280Kg |
360Kg |
|
|
X/Y/Z 3-axis Linear Scale(2.5D) |
Resolution:0.5um |
|||
|
Accuracy(um) |
E1(x/y)=2.5+L/100 |
|||
|
Repeatability |
±2um |
|||
|
Movement System |
X,Y,Z-axis:Screw Rod |
|||
|
Movement Control |
CNC Auto Servo Movement Control |
|||
|
Video System |
TEO 1/2" color CCD camera |
|||
|
Manual Coaxial Zoom Lens |
||||
|
Optical Magnification:0.7-4.5x; Video Magnification:20-148x |
||||
|
Working Distance(Standard): 92mm |
||||
|
Object View(Standard) |
11.1~1.7mm |
|||
|
Speed(mm/s) |
X,Y-axis:200 Z-axis:50 |
|||
|
Illumination |
Contour |
Adjustable 256-grade LED Parallel illumination |
||
|
Surface |
Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination |
|||
|
3D Measuerment |
3D Module and UK Renishaw Touch Probe |
|||
|
Measuring Software |
Microsize |
|||
|
Working Environment |
Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80% |
|||
|
Power Source |
AC 100~220V 50/60HZ 10A |
|||
VMC CNC Automatic Video Measuring System Standard Delivery：
|
Product Name |
Product Name |
Product Name |
|
Measuring Software |
CCD Camera/Video Capture Card |
Manual Coaxial Zoom Lens |
|
Mainframe/Dell PC System |
Scale Transfer /Movement Control Card |
48 –Division LED Illumination |
|
Linear Scale/Calibration Block |
100mm Length Block(3D) |
Renishaw Probe MCP-K2(3D) |
