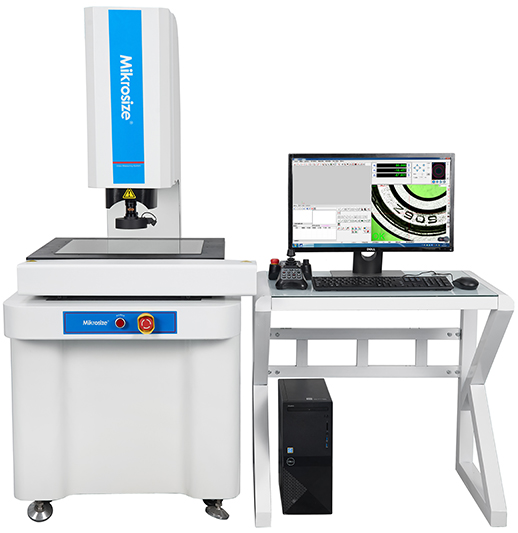

VMU CNC Vision Measuring System

Category： Vision Measuring System
Views：1346
TEO 1/2
6.5x Auto Coaxial Zoom Lens
CNC Auto Servo Movement Control
256-grades 5-Ring & 8-Division LED
Product description：CNC Vision Measuring System
Inquiry

VMU CNC Automatic Vision Measuring System Description:

● CNC fully auto close loop control, auto measurement; Integrative design , convinient for measuring;

● 00” Grade JINANQING Stable and Reliable Marble base AND Pillar , Ensuring high measuring speed, accuracy and precision

● Precision Linear Guide and Grinding Ball Screw, AC servo motor ensures accuracy

● High precision linear scale, resolution is 1um, high accuracy, great stability;

● Manual zoom lens and 1 /2" color high resolution CCD camera;

● Programmable 5-ring, 8-division LED Surface illumination controlled by software and with memory function

● Contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

● Optional imported touch probe, realize 3D measurement;

VMU CNC Automatic Vision Measuring System Application:

● It is widely used in machinery manufacturing, electronics, automobile, hardware, plastic, mold and other industries.

● It can accurately measuring workpiece size,shape,position tolerance, so as to complete the tasks of components inspection, shape measurement, process control and so on.

VMU CNC Automatic Vision Measuring System Specification：

Product Name		Fully Auto Video Measuring System
2.5D Model		VMU-3020	VMU-4030	VMU-5040
3D Model		VMU-3020P	VMU-4030P	VMU-5040P
X,Y-axis Travel		300x200mm	400x300mm	500X400mm
Z-axis Travel		200mm
Accuracy		E1(x/y)=2.5+L/100(um)
Video System		TEO 1/2" Colorful CCD Camera
		6.5x Auto Coaxial Zoom Lens
		Optical Magnification:0.7~4.5x, Video Magnification:20~148x
		Working Distance: 92mm
Object View(Standard)		11.1~1.7mm
Linear Scale Resolution		0.5um
Movement System		X.Y.Z-axis Screw Rod
Movement Control		CNC Auto Servo Movement Control
Speed(mm/s)		X,Y-axis:200 Z-axis:50
Illumination	Contour	Adjustable 256-grade LED Parallel Illumination
	Surface	Adjustable 256-grades 5-Ring & 8-Division LED Cold illumination
3D Measuerment		3D Module and UK Renishaw MCP-K2 Touch Probe
Measuring Software		Microsize
Max.load Capacity		25Kg	25Kg	25Kg
Dimension		750X520X980mm	1000X620X990mm	1300x750x1000mm
Net Weight		240Kg	280Kg	360Kg
Working Environment		Temperature: 20℃±2℃, Temperature Variation<2℃/hr,Humidity:30~80%
Power Source		AC 100~220V 50/60HZ 10A

VMU CNC Vision Measuring System Standard Delivery：

Product Name	Product Name	Product Name
Measuring Software	CCD Camera/Video Capture Card	6.5x Auto Coaxial Zoom Lens
Mainframe/Dell PC System	Scale Transfer /Movement Control Card	8 Division LED Illumination
Linear Scale/Calibration Block	100mm Length Block(3D)	Renishaw Probe (3D)
