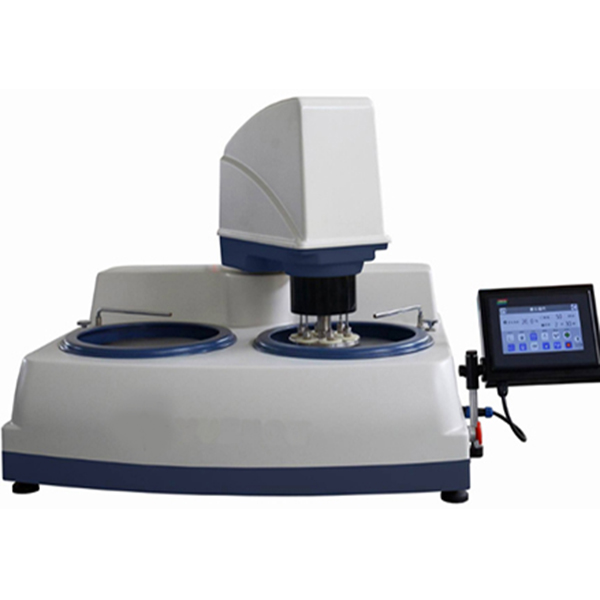

TAGP Automatic Metallurgical Grinding Polishing Machine

Category： Metallurgical Equipments
Views：1175
The latest product with beautiful appearance
High resolution LCD touch screen panel
DC brushless motor
The platen speed of polishing disc operates independently
Product description：Automatic Metallurgical Grinding Polishing Machine
Inquiry

TAGP Automatic Metallurgical Grinding polishing machine Description:

●Produced with ABS material.

●The latest product with beautiful appearance.
●High resolution LCD touch screen panel
●Controlled by single chip microcomputer.
●DC brushless motor.
●Non-toxic painted. Strong large support chassis design ensures the precision rotary balance.Powerful motor brings strong power and efficient grinding and polishing .
●Spindle leak-proof design and the super mute design
●It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
●It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
●It can increase the grinding quality and production efficiency ,it is adapted to various materials preparation of test samples.
●The platen speed of polishing disc operates independently.

TAGP Automatic Metallurgical Grinding Polishing Machine Specification:

Model	TAGP-2-250	TAGP-2-300
Product Name	Touch Screen Automatic Grinding and Polishing Machine
Fuction	Magnetic Dual Discs , Stepless, Auto-head
Polishing and Grinding Disc Diameter	250mm	300mm
Rotating speed	100～1000r/min, stepless Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Motor	DC Brushless Motor, 220V, 1.1kw
Rotating Speed	Stepless 30~120r/min
Center Cylinder Pressure	0-0.5Mpa (Suggest 0.3~0.4 Mpa)
Planetary Cylinder Pressure	0-0.5Mpa (Suggest 0.2~0.3 Mpa)
Sample installation quantity	6
Motor of Grinding Head	DC Brushless Deceleration Motor, 220V, 100W
Dimensions	725×1200×760mm
Net Weight	135Kg

TAGP Automatic Metallurgical Grinding Polishing Machine Packing List :

Item	TAGP--2-250	TAGP--2-300
Machine Mainframe	1Set	1Set
Grinding&Polishing Disc	2pc	2pcs
Magnetic Plate	2pcs	2pcs
Backing Plate	6pcs	6pcs
Adhesive Abrasive Paper	6pcs	6pcs
Adhesive Polishing Cloth	4pcs	4pcs
Water Flow-in Pipe	Input 1pc, Output 2pcs	Input 1pc, Output 2pcS
Instruction Manual	English	English
Product Certificate	English	English
