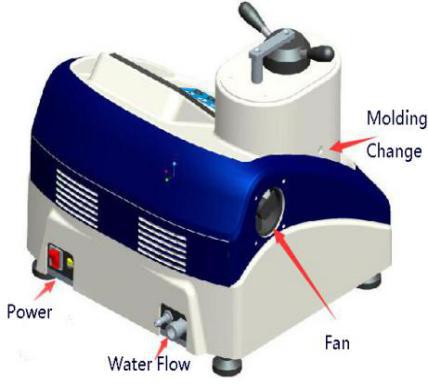

AMP-2A Touch Screen Automatic Metallurgical mounting press Description:
●hydraulic water-cooling
●automatic single head
●controlled by program
●one button operation of the process of heating, loading, holding, cooling and unloading.
●Application:Thermoset materials, such as electricity jade powder, bakelite powder material.
AMP-2A Touch Screen Automatic Metallurgical Mounting Press Specification:
|
Mold Diameter |
Φ22mm, Φ30mm, Φ45mm (choose one) |
|
Heater Specification |
220V, 1.6kw |
|
System Pressure |
0~20MPa (The default system pressure is 12MPa.) |
|
Temperature Setting Range |
0~180℃ (The default setting temperature is 150℃.) |
|
Dwell Time |
Ex-factary Setting 30s |
|
Cooling Method |
Automatic water cooling |
|
Power Supply |
220V, 50Hz |
|
Dimensions |
530×510×430mm |
|
Weight |
60kg |
AMP-2A Touch Screen Automatic Metallurgical Mounting Press Packing List:
|
Packing List |
Packing List |
Packing List |
|
Machine Mainframe |
30g Bakelite powder |
Instruction Manual |
|
Measuring Cup |
2 pcs water pipes |
Product Certificate |
