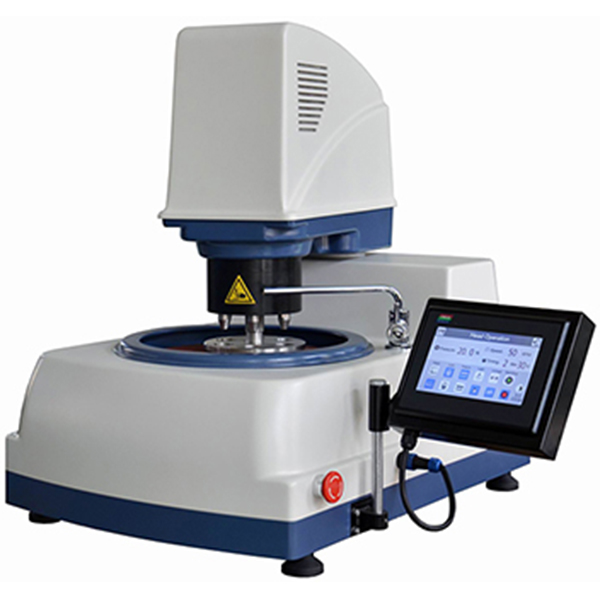

TAGP Touch Screen Auto Metallurgical Grinder Polisher

Category： Metallurgical Equipments
Views：1309
High resolution LCD touch screen panel
Controlled by single chip microcomputer
The platen speed of polishing disc operates independently.
Magnetic Single Disc , Stepless, Auto-head
Product description：Auto Metallurgical Grinder Polisher
Catolog Download Inquiry

TAGP Touch Screen Auto Metallurgical Grinder Polisher Description:

●Produced with ABS material.

●The latest product with beautiful appearance.
●High resolution LCD touch screen panel
●Controlled by single chip microcomputer.
●DC brushless motor.
●Non-toxic painted. Strong large support chassis design ensures the precision rotary balance.Powerful motor brings strong power and efficient grinding and polishing .
●Spindle leak-proof design and the super mute design
●It supports for fast disk system, with the use of elasticity, and can be used with automatic grinding device.
●It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
●It can increase the grinding quality and production efficiency ,it is adapted to various materials preparation of test samples.
●The platen speed of polishing disc operates independently.

TAGP Touch Screen Auto Metallurgical Grinder Polisher Specification:

Model	TAGP-1-250	TAGP-1-300
Product Name	Touch Screen Automatic Grinding and Polishing Machine
Function	Magnetic Single Disc , Stepless, Auto-head
Polishing and Grinding Disc Diameter	250mm	300mm
Rotating Speed	100～1000r/min, stepless Or four speed 250r/min, 500r/min, 750r/min, 1000r/min
Motor	DC Brushless Motor, 220V, 1.1kw
Rotating Speed of Grinding Head	Stepless 30~120r/min,
Center Cylinder Pressure	0-0.5Mpa (Suggest 0.3~0.4 Mpa)
Planetary Cylinder Pressure	0-0.5Mpa (Suggest 0.2~0.3 Mpa)
Sample Installation Quantity	6
Motor of Grinding Head	DC Brushless Deceleration 220V, 100W Motor,
Dimensions	725x500x760mm
Net Weight	75kg

TAGP Touch Screen Auto Metallurgical Grinder Polisher Packing List:

Item	TAGP-1-250	TAGP-1-300
Machine Mainframe	1Set	1Set
Grinding&Polishing Disc	1pc	1pc
Magnetic Plate	1pc	1pc
Backing Plate	3pcs	3pcs
Adhesive Abrasive Paper	6pcs	6pcs
Adhesive Polishing Cloth	2pcs	2pcs
Water Flow-in Pipe	Input 1pc, Output 1pc	Input 1pc, Output 1pc
Instruction Manual	English	English
Product Certificate	English	English
