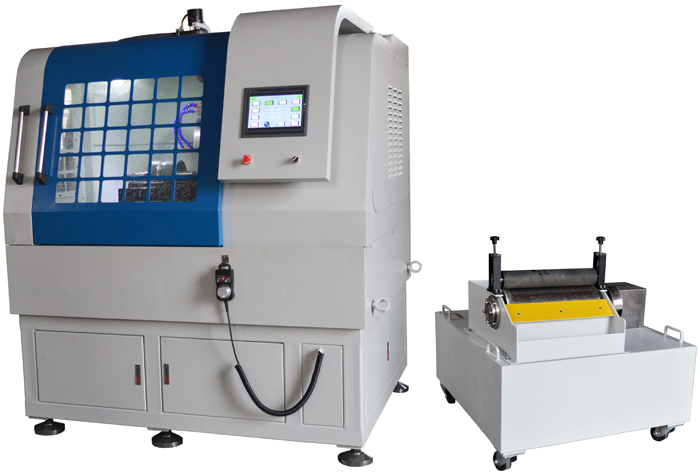

AC-120/200300 Automatic Metallurgical Cutter

Category： Metallurgical Equipments
Views：1423
Product description：Automatic Metallurgical Cutter
Inquiry

AC-120/200300 Automatic Metallurgical Cutter Description:

●The machine is a PLC controlled automatic metallographic sample cutting machine, X, Y, Z directions controlled automatically and precisely, intelligent cutting, the amount of feed can change depending on the material’s hardness, to achieve the fastest cutting effect.

●Cutting speed frequency conversion control, has very high reliability and control ability. (1) Electronic hand wheel, automatic transform at will. (2) Touch screen displays various cutting data. (3) Precise positioning. (4) Swing cutting and continuous cutting two cutting ways, according to the material’s hardness, it can change the cutting speed, to achieve the fast cutting effect.
●The cutting speed can be up to 10mm/min when cutting steel entity cylinder.
●In order to facilitate cutting room cleaning and security of the spindle motor, we adopt electro-mechanical dissociation.
●There is a large observation window on the cutting room security cover, makes the user easy to observe the entire process of cutting samples.
●Installed LED lights in the cutting room, it achieves effective lighting for the entire area of the cutting room.
●Cutting indoor ventilation fan can ensure the efficient flow discharge of various steam and smoke caused by the cutting and increases the indoor brightness and clarity.
●The design is more humane and adopts the principle of ergonomics.
●The most important feature: Low noise, easy to operate, beautiful appearance, safety use. It is one of the best equipment for laboratory sample preparation.
●The body form: vertical. Mainly composed of upper (safety cover), middle (frame), right sliding door, side door, the lower frame (electrical box, tool box), fixture, rinsing tap, cooling water tank (independent).
●It adopts 7.5KW frequency conversion motor, direct cutting disc, stepless speed regulation, concise design and solid structure.
●The direct driving provides the transmission between the motor and the cutting disc, and ensure the high efficiency, low noise, minimum maintenance and longer service life.
●Design of special cutting for large workpieces, QGZ-300 makes the maintenance of machine parts and processing of large workpieces easier
●Sliding door and hinged door makes you have more space and unlimited access, more convenient for you to place the large workpiece in the right position.
●You can put the workpiece into the cutting room from three directions (up, front and left).
●The work area adopts fully enclosed structure and a transparent protective cover for the observation of cutting. Equipped with a cooling water tank for storing cooling liquid, do avoid using tap water as cooling liquid.
●After the cutting work is finished, use the left rinsing tap to rinse the indoor garbage and then close the safety door.

AC-120/200300 Automatic Metallurgical Cutter Specifications:

Model	AC-120		AC-200		AC-300
Control	Manual / Automatic (self choose),Three axis linkage, 10 inch touch screen control, Can be switched to the operating handle wheel
Function	Automatic spray system, alarm system, dual LED lamp lighting, red cursor positioning
Feeding speed	3mm/min, 5mm/min, 8mm/min, 12mm/min (user may modify the set speed according to requirement)
Cutting Disc	Φ380×2.8×Φ32 mm		Φ400×3×Φ32 mm		Φ400×3×Φ32 mm
Working Stage(X*Y)	450×350 mm		485×400 mm		530×630 mm
Y axis maximum travel distance	250 mm		300 mm		420 mm
X axis maximum travel distance	100 mm		100 mm		110 mm
Z axis maximum travel distance	160 mm		230 mm		230 mm
Maximum Cutting	120×100 mm		200×120 mm		300×150 mm
Clamping Device Throat	120 mm		200mm		300 mm
Volume of the water tanker	120L		120L		120L
Frequency Conversion Motor	5.5kw, Rotating speed: 500-2800r/min, Power: 380V, 50Hz		7.5kw, Rotating speed: 500-2800r/min, Power: 380V, 50Hz		7.5kw, Rotating speed: 500-2800r/min, Power: 380V, 50Hz
Feeding Motor	servo motor		servo motor		servo motor
Dimensions	1400×1000×1850mm		1550×1100×1900mm		1650×1350×1900mm
Power	Three-phase five-wire 380V 50Hz: A, B, C, N, PE
Machine Form	Vertical
Weight	About 1800kg	About 2200kg		About 2500kg

AC-120/200300 Automatic Metallurgical Cutter Packing List:

Item	Item	Item
Machine Mainframe	Spanner 46#,41#	Instruction Manual
120L water tank	2 pcs Cutting Disc Ø400×3×Ø32 mm	Certificate
300mm Clamping device	Water Pipe Ø 3/4 inch	Water Pipe Ø 2 inch
