MVP-1000 Series Practical Digital Micro Vickers Hardness Tester

Category： Hardness Tester
Views：1237
Digital Encoder Measurement
Adjustable 5~60s Dwell Time
1HV~2967HV Testing Range
Halogen Illumination
Product description：Digital Micro Vickers Hardness Tester
Catolog Download Inquiry

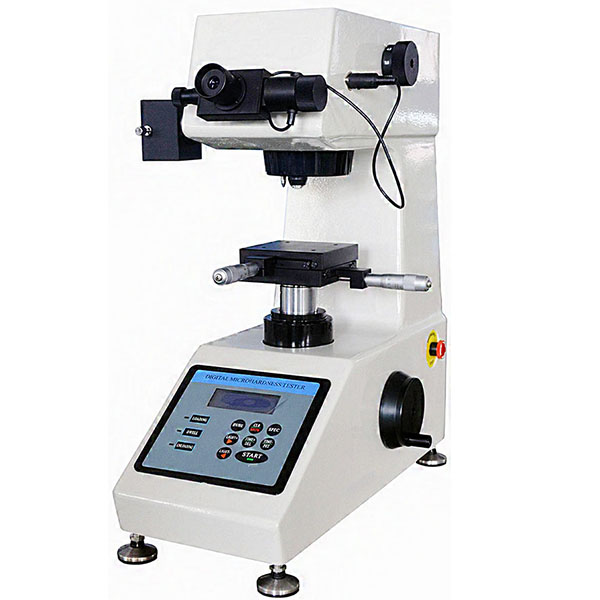

MVP-1000 Micro Vickers hardness tester Instrument Description:

● MVP-1000 Series is a precision micro Vickers hardness testing machine integrated the technology of optics, mechanics and computer.
● MVP-1000Series is equipped with LCD screen , the operation is more directly and clearly.
● MVP-1000 Series with Selection of the Vickers or the Knoop measuring methods,
● MVP-1000 Series Can be equipped with CCD device.

MVP-1000 micro vickers hardness tester Technical Specifications:

Product Name		Manual-turret Micro Vickers Hardness Tester	Auto-turret Micro Vickers Hardness Tester
Model		MVP-1000M	MVP-1000A
Testing Force	gf	10、25、50、100、200、300、500、1000
	N	0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80
Indentation Measurement		Digital Encoder Measurement
Output Data		Rs232/Mini-printer
Loading Control		Automatic (Loading, Dwell, Unloading)
Magnification of Microscope		Observation:10x; Measurement:40x
Magnification on of Eyepiece		10x Eyepiece
Dwell Time		Adjustable 5~60s
Testing Range		1HV~2967HV
X-Y Anvil		Size:100x100mm; Travel:25 x25mm; Resolution:2um
Illumination		Halogen
Max. Height of Specimen		100mm
Instrument Throat		98mm
Power Supply		AC220V/50Hz;110V/60Hz
Dimension(LxWxH)		480 x305x545mm
Packing Dimension		500 x 490 x 700mm
Gross/Net Weight		45Kg/35Kg
Execution Standard		GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384

MVP-1000 Micro vickers hardness tester Standard Packing List:

Packing List	Packing List	Packing List	Packing List
Vickers Indenter	Objectives 40x	Accessories Box	Weights/Gradienter
Hardness Block HV0.2	Objectives 10x	Anti-dust Cover	Thin-piece Clamp
Hardness Block HV1	X-Y Anvil/Mini-printer	Level Screw	Filament Clamp
Fuse/Power Cable	Eyepiece	Instruction Manual	Flat Clamp
