DAGP-230 Digital Automatic Metallographic Grinding Polishing Machine

Category： Metallographic Grinding Polishing Machine
Views：1772
Grinding Speed, Timing, Steering and Tank Cleaning Function
Membrane Switch, Digital Display
Controlled by single chip microcomputer
Be adapted to various materials preparation of test samples
Product description：DAGP-230 Digital Automatic Metallographic Grinding Polishing Machine
Inquiry

DAGP-230 Digital Automatic Metallographic Grinding polishing machine Description:

●Produced with plastic sewage collection plate and cover with a new and beautiful appearance.
●Grinding Speed, Timing, Steering and Tank Cleaning Function
●Membrane Switch, Digital Display.
●Controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with digital tube display.
●DC brushless motor and don’t need to replace the brush, used for a long time.
●The machine is plastic painted and non-toxic. Strong large support chassis design ensures the precision rotary balance.
●Powerful motor brings strong power and efficient grinding and polishing.
●Spindle leak-proof and super mute design
●It supports for fast disk system, with the use of elasticity, can be used with automatic grinding device.
●It can replace the manual grinding and polishing of the procedure, timing and set the speed of grinding head.
●It can increase the grinding quality and production efficiency
●This machine can be adapted to various materials preparation of test samples. The polishing disc diameter is large.

DAGP-230 Digital Automatic Metallographic Grinding Polishing Machine Specifications:

Model	DAGP-1-230	DAGP-2-230
Product Name	Digital Automatic Metallographic Grinding and Polishing Machine

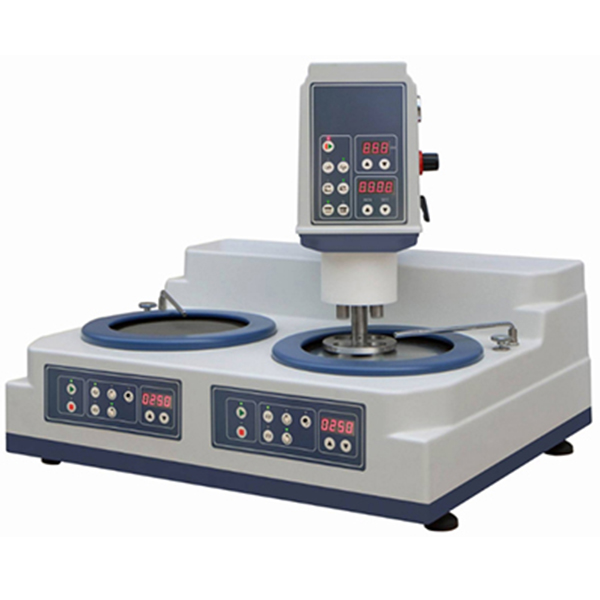

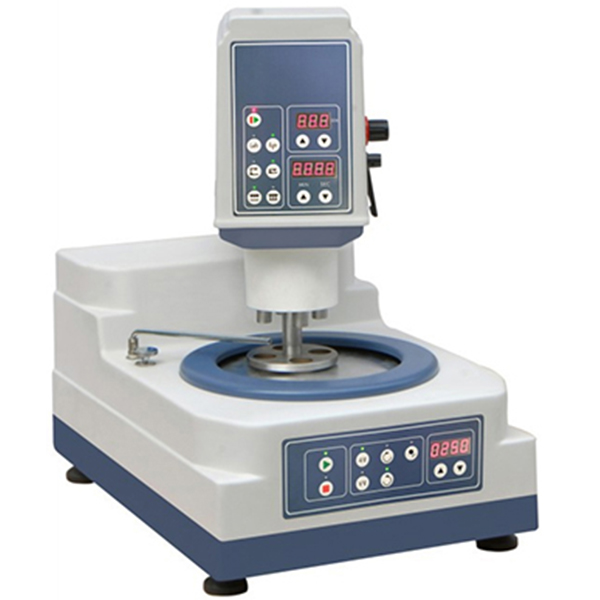

Function	Single Disc, Stepless, Auto-head	Dual Disc, Stepless, Auto-head
Polishing and Grinding Disc Diameter	230mm
Abrasive Paper Diameter	230mm
Display	Speed ,Time Countdown, Air Pressure
Motor	DC Brushless Motor, 220V 400W
Rotating Speed	Stepless 100～1000r/min or Four Speeds 250r/min, 500r/min,750r/min, 1000r/min
Cylinder Pressure	Adjustable (Suggest 0.2~0.3mpa)
Sample Size	Selectable, φ22, φ30, φ45 etc.
Machine Body	Plastic Case, Corrosion Resistant Head, Anti-dust
Grinding Head Motor	DC Brushless Deceleration220V,100W
Grinding Head Speed	Stepless 20-120 r/min
Specimen Chuck	Specimen Clamp Can be Quickly Replaced
Grinding Head Rotating Angle	Adjustable
Grinding Direction	Forward or Reverse
Grinding Time	Adjustable Range 0-100 minutes
Net Weight	50Kg	78Kg
Machine Dimension	420×623×645mm	757×623×645mm

DAGP-230 Digital Automatic Metallographic Grinding Polishing MachinePacking List :

Packing List	Packing List	Packing List
Mainframe	Backing Plate	Water flow-in Pipe
Ø230mm Polishing&Grinding Disc	Ø230mm Adhesive Polishing Cloth	Water flow-out Pipe
Magnetic Disc	Ø230mm Adhesive Abrasive Paper	Instruction Manual/Certificate
