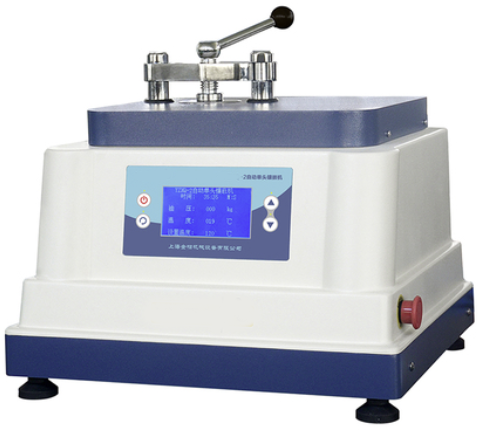

AMP-1/2 Auto Mounting Press

Category： Metallographic Mounting Press
Views：1658
Product description：Auto Mounting Press
Inquiry

Description:

●Mounting is a very important process of metallographic sample preparation, especially for some difficult holding tiny samples, irregularly shaped samples, or what needs for protecting edge and automatic grinding and polishing, inlaying is an essential process before sample preparation.
●Automatic mounting press is an advanced hydraulic water-cooling machine.
●The whole process of mounting is controlled by program, realizing one button operation of the process of heating, loading, holding, cooling and unloading.
●You can optionally choose one or two of ф22mm, ф30mm, ф45mm three mold specifications, to meet the different needs for different customers.
●It has solidified the mounting program, especially suitable for thermoset materials, such as electricity jade powder and Bakelite powder materials.
●Automatic mounting press makes your sample preparation work more easily and more labor-saving and the mounting quality better and more stable.

Specification:

Model	AMP-1	AMP-2
Product Name	Single Head Automatic Mounting Press	Dual Head Automatic Mounting Press
Mould Specification	Φ22mm, Φ30mm, Φ45mm (choose one)	Φ22mm, Φ30mm, Φ45mm (choose two)
Heater	220V, 2KW (ф45mm); 220V, 1.2KW	220V, 2KW (ф45mm); 220V, 1.2KW
System pressure	0~18MPa (Ex-factary Setting is 16MPa)	0~20MPa (Ex-factary Setting 12MPa)
Temperature setting range	0~180℃ (Ex-factary Setting120℃)	0~180℃ (Ex-factary Setting 120℃)
Dwell time	Ex-factary Setting 2 min 20s	Ex-factary Setting 2 min 20s
Cooling method	Auto Water cooling	Auto Water cooling
Power	220V, 50HZ	220V, 50HZ
Dimension	520×480×520mm	620×550×550mm
Net Weight	60Kg	105Kg

Packing List:

Packing List	Packing List	Packing List
Machine Mainframe	Measuring cup	Instruction Manual
2 pcs Water Pipe φ10mm	Bakelite powder 30g	Product Certificate
