GP-230 Metallurgical Grinder Polisher Description:
●Stepless speed regulation;
●DC Brushless Motor
●Digital tube displays disc speed
●Single chip microcomputer control
●Very low noise operation
●ABS material,newly developed product.
●Combines three kinds of functions together, change the rubbing, polishing or grinding dish
●Can finish all process such as rough rubbing, fine rubbing, dry rubbing, wet rubbing and grinding and polishing of various samples.
●Adapt to the preparations of different materials.
●The rotation speed of rubbing, polishing, and grinding dish is operated independently,
●Starts steady, the transmission power is big, low noise.
●Improve grinding and polishing quality and preparing efficiency.
GP-230 Metallurgical Grinder Polisher Specification:
|
Model |
GP-1-230 |
GP-2-230 |
|
Name |
Metallographic Sample Grinding and Polishing Machine |
|
|
Function |

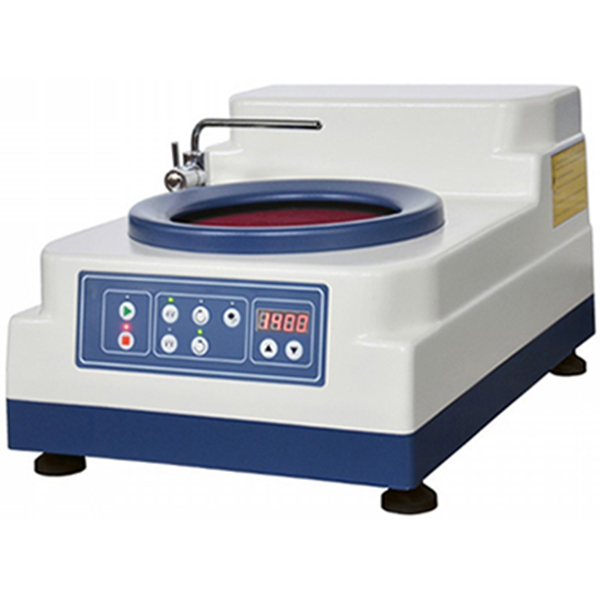

Stepless Single Disc |

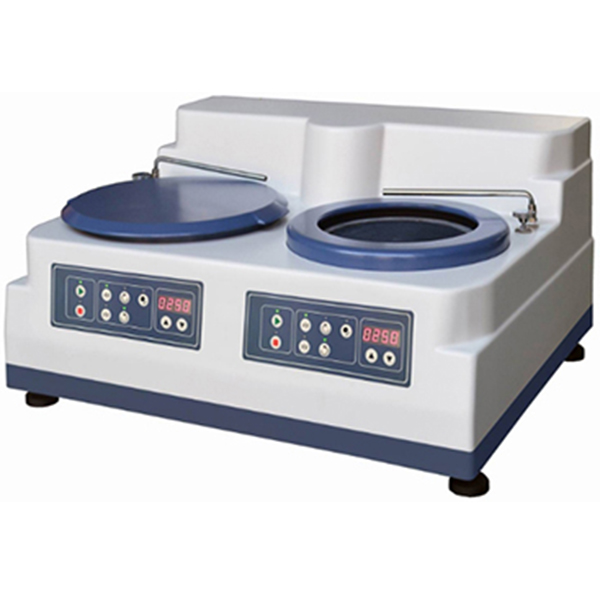

Stepless Dual Discs |
|
Grinding and Polishing Wheel Diameter |
230mm |
230mm |
|
Abrasive Paper Diameter |
230mm
|
230mm
|
|
Rotating Speed |
100-1400r/min or four speeds:300r/min,600r/min,900r/min,1400r/min |
100-1400r/min or four speeds:300r/min,600r/min,900r/min,1400r/min |
|
Electric Motor |
DC Brushless 400W, 220V, 50Hz |
|
|
Dimensions |
420×623×320mm |
757 ×583× 300mm |
|
Net Weight |
30KG |
52Kg |
GP-230 Metallurgical Grinder Polisher Packing List:
|
Item |
GP-1-230 |
GP-2-230 |
|
Machine Mainframe |
1 set |
1 set |
|
Polishing/Grinding Disc |
2 pcs(1pc installed well) |
3 pcs(2 pcs installed well) |
|
Ring |
2pcs(1pc installed well) |
3 pcs(2 pcs installed well) |
|
Water flow-in pipe |
Input 1 pc, Output 1pc |
Input 1 pc, Output 2pcs |
|
Waterproof Abrasive Paper |
6 pcs |
6 pcs |
|
Instruction Manual |
English |
English |
|
Certificate |
English |
English |
