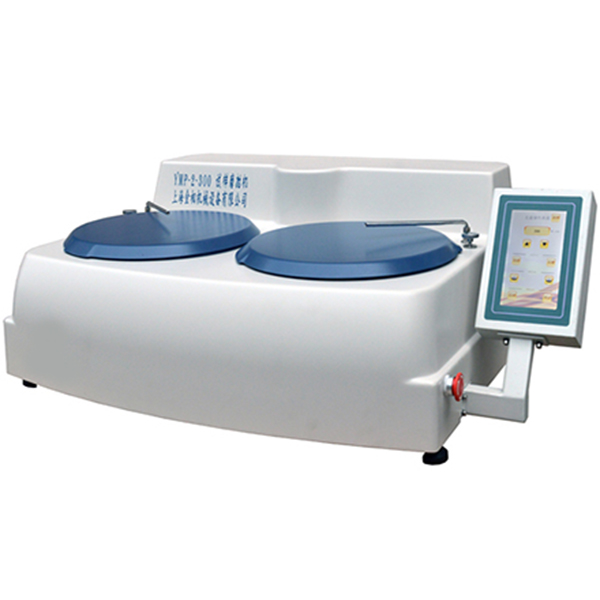

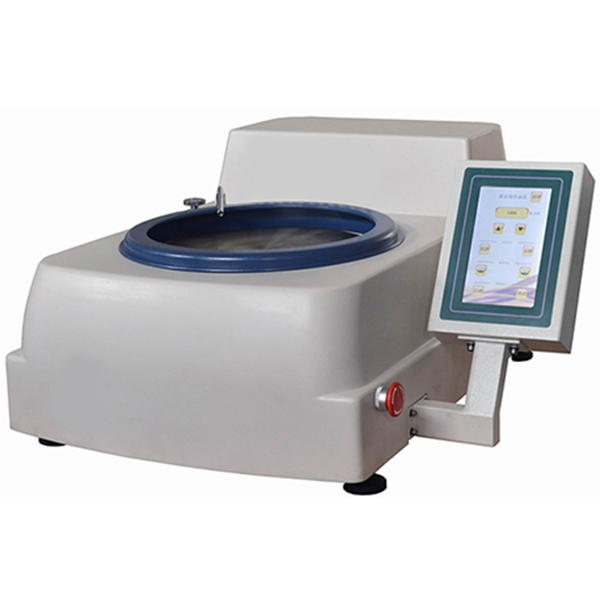

TGP Touch Screen Grinding Polishing Machine

Category： Metallographic Grinding Polishing Machine
Views：1597
Controlled by single chip microcomputer
100RPM-1000RPM of stepless speed regulation with touch screen display and control.
Powerful motor brings strong power
Platen speed of polishing disc operates independently.
Product description：TGP Touch Screen Grinding Polishing Machine
Inquiry

TGP Touch Screen Grinding Polishing Machine Description:

●Produced with ABS sewage collection plate and cover with a new and beautiful appearance.

●Controlled by single chip microcomputer, grinding disc 100RPM-1000RPM of stepless speed regulation with touch screen display and control.
●DC brushless motor can be used for a long time.
●Non-toxic painted. Strong large support chassis design ensures the precision rotary balance.
●Powerful motor brings strong power and efficient grinding and polishing
●Spindle leak-proof design ensures the bearing almost without damage
●Super mute design brings a good experience.
●It supports for fast disk system
●Can be adapted to various materials preparation of test samples.
●The polishing disc diameter is large
●The platen speed of polishing disc operates independently.

TGP Touch Screen Grinding Polishing Machine Specifications:

Model	TGP-1-250	TGP-1-300	TGP-2-250	TGP-2-300
Product Name	Touch Screen Metallograhic Grinding and Polishing Machine
Function	Magnetic Single Disc, Stepless		Dual Single Discs, Stepless
Polishing and Grinding Disc	250mm	300mm	250mm	300mm
Abrasive Paper Diameter	250mm	300mm	250mm	300mm
Rotating Speed	Stepless 100～1000r/min Or Four Speeds: 250r/min, 500r/min, 750r/min, 1000r/min
Motor	DC Brushless Motor,220V, 1.1kw		DC Brushless Motor,220V, 1.1kw
Dimensions	725x500x360mm		725x900x360mm
Net Weight	55kg		93kg

TGP Touch Screen Grinding Polishing Machine Packing List:

Item	TGP-1-250	TGP-1-300	TGP-2-250	TGP-2-300
Machine Mainframe	1 set	1 set	1 set	1 set
Polishing & Grinding Disc	1pc	1pc	2pcs	2pcs
Magnetic Plate	1pc	1pc	2pcs	2pcs
Backing Plate	3pcs	3pcs	6pcs	6pcs
Adhesive Abrasive Paper	6pcs	6pcs	6pcs	6pcs
Adhesive Polishing Cloth	2pcs	2pcs	4pcs	4pcs
