Description:

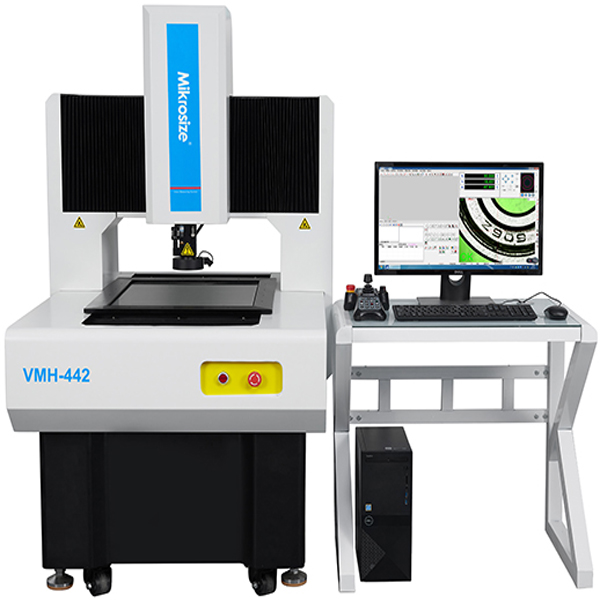

●VMH Series is a Fixed Gantry video measuring machine, it is designed for high accuracy and large dimension measurement. With high precision measurement accuracy and stability,It is widely used in , medical devices, LCD, aerospace, mechanical manufacturing, electronics, automobile, hardware, plastic, mold and other industries,

●Fixed moving bridge structure is adopted to ensure high accuracy and stability of measurement. Four-axis CNC fully auto loop control, auto measurement;

●Granite base and pillar are adopted, with stable performance and not easy to deform

●Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

●Independent research and development of measurement software, with fast focusing, automatic edge finding, SPC data processing analysis and automatic measurement functions

●Independent research and development of motion control system, integrated in the instrument, with higher stability

●Joystick / mouse operation, easy to use

●The laser indicator indicates the measuring position, which is convenient for quick positioning

●Equipped with auto zoom lens, precise auto zoom, only one pixel calibration is needed, which can realize efficient measurement under multi -magnification

●P-grade linear guide, precision grinding grade ball screw, AC servo motor, to ensure the accuracy and stability of the system position;

●Imported high definition color industry camera, ensure clear observation and stable measurement requirement;

●6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;

●Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;

●With proprietary fully auto measuring software , powerful function, simple operation;

●Optional touch probe and laser probe, it can also be customized according to customer request.

Specification:

Standard Delivery:
