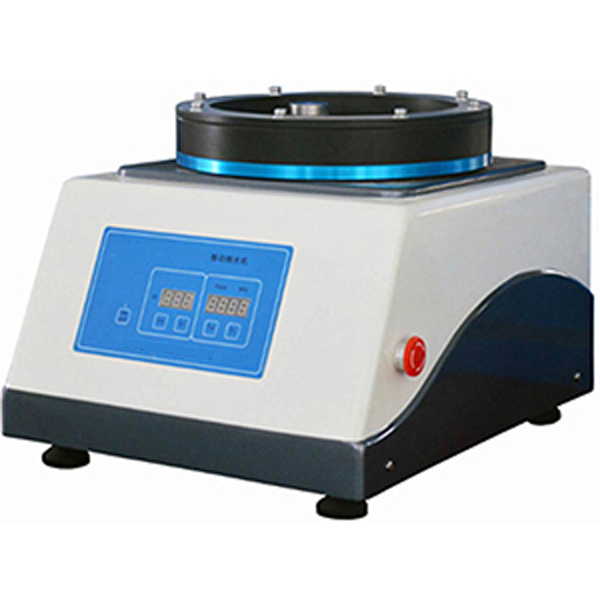

VP-300 Vibration Polishing Machine

Product Item : VP-300 Vibration Polishing Machine
Category： Metallurgical Equipments
Views：1290
Reduces dependence on staff skills and achieves higher polishing effect
Simple operation, wide applicability
300mm Polishing Diameter
ф22, ф30, ф45mm Clamping Sample Diameter
Product description：VP-300 Vibration Polishing Machine
Inquiry

VP-300 Vibration Polishing Machine Description:

●Vibration polishing machine design reduces dependence on staff skills and achieves higher polishing effect.

●Spring plate and magnetic induction motor producing vibration.
●Simple operation, wide applicability; almost can be applied to all kinds of materials; set polishing time according to sample state; large polished area; not produce any additional damage and deformation layer in the polishing process ; can effectively remove and avoid embossed, embedded and plastic rheological defects.
● can produce almost completely horizontal vibration, which maximizes the time for sample to contact polishing cloth.
●user can leave after setting program, sample will automatically begin to vibrate on the polishing disc. And a number of samples can be placed at one time, greatly improves work efficiency.
●Anti-dust cover can ensure the cleanliness of the polishing disc.
●The whole machine adopts ABS material, the appearance is novel and beautiful,
●Vibration frequency can be automatically adjusted with the working voltage
●VP-300 is not suitable for polishing specimen with very rough surface,which consumes too much time.

VP-300 Vibration Polishing Machine Specification:

Product Name	Vibration Polishing Machine
Model	VP-300
Polishing Disc Diameter	300mm
Polishing Cloth Diameter	300mm
Vibration Power	1.5kw
Vibration Voltage	Adjustable 50-90v
Vibration Frequency	Adjustable 25-400Hz
Voltage Using	220V
Max Setting Time	Ex-factory setting 3 hours
Clamping Sample Diameter	ф22, ф30, ф45mm
Machine Dimensions	450×565×400mm
Net Weight	90kg

VP-300 Vibration Polishing Machine Packing List:

Packing List	Packing List	Packing List
Machine Mainframe	Clamp DeviceФ45mm 2 pcs	Ф300mm Polishing Cloth
Clamp DeviceФ22mm 2 pcs	3/5mm Wrench	Level Block
Clamp DeviceФ30mm 2 pcs	6mm Wrench	Instruction Manual/Product Certificate
