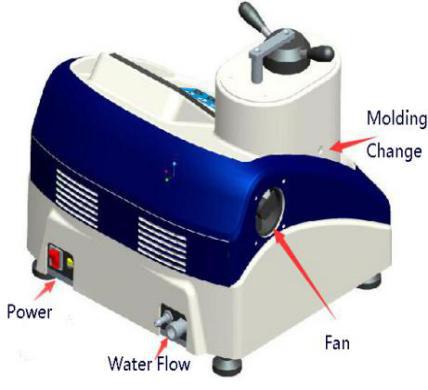

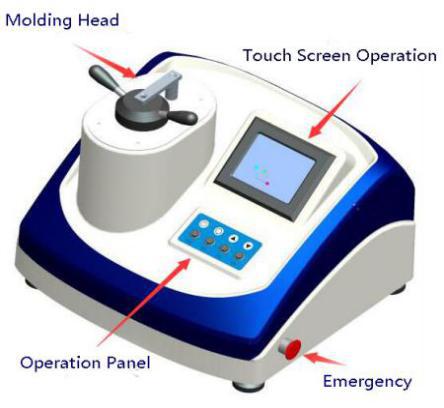

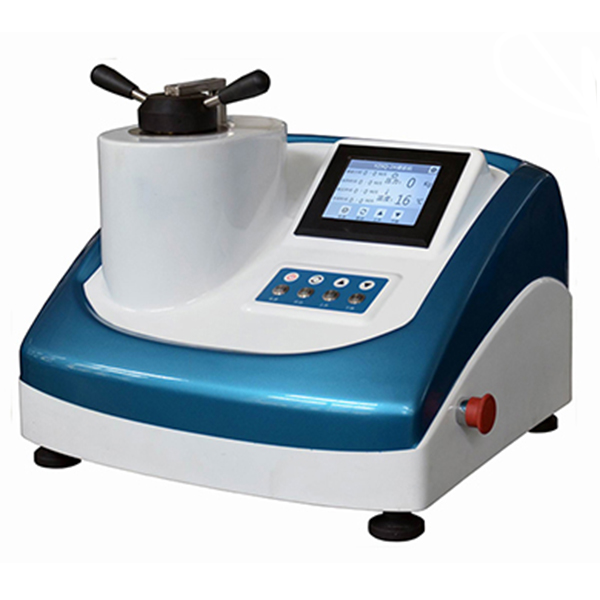

AMP-2A Touch Screen Automatic Mounting Press

Description:

●hydraulic water-cooling

●automatic single head

●controlled by program

●one button operation of the process of heating, loading, holding, cooling and unloading.

●Application:Thermoset materials, such as electricity jade powder, bakelite powder material.

Specification:

Mold Diameter	Φ22mm, Φ30mm, Φ45mm (choose one)
Heater Specification	220V, 1.6kw
System Pressure	0~20MPa (The default system pressure is 12MPa.)
Temperature Setting Range	0~180℃ (The default setting temperature is 150℃.)
Dwell Time	Ex-factary Setting 30s
Cooling Method	Automatic water cooling
Power Supply	220V, 50Hz
Dimensions	530×510×430mm
Weight	60kg
