What is video measuring machine

What is video measuring machine ？

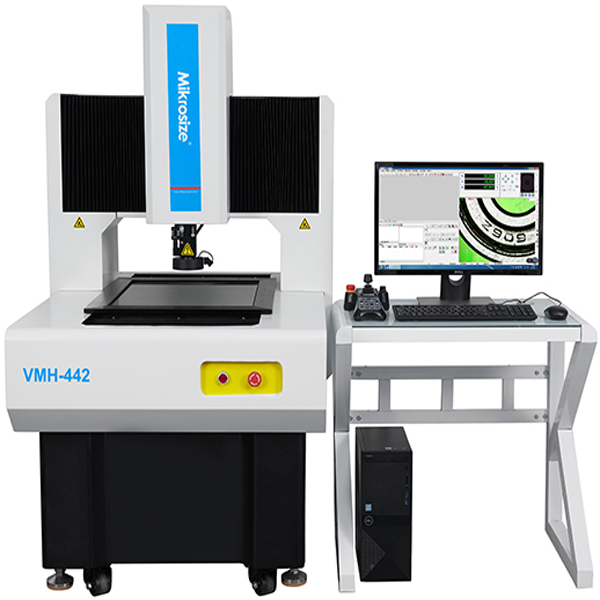

video measuring machine is based on CCD digital image, which is based on the powerful software capability of computer screen measurement technology and spatial geometry operation. After the computer installed the special control and graphics measurement software, it became the measuring brain with software soul, and it was the main body of the whole equipment. It can read the displacement value of optical ruler quickly, and obtain the desired results in a moment by software module calculation based on space geometry; And the screen is generated to provide the operator with the image contrast, so as to visually distinguish the possible deviation of the measurement results.

Purpose of video measuring machine:

1. The measurement accuracy is improved by multi-point measurement points, lines, circles, orphans, ellipses and rectangles;

2. Combined survey, center point structure, intersection structure, line structure, circular structure and angle structure;

3. Coordinate translation and coordinate correction improve the measurement efficiency;

4. The aggregation instruction makes the same kind of workpiece batch measurement more convenient and fast, and improves the measurement efficiency;

5. The survey data is directly input into AutoCAD, and it becomes a complete drawing;

6. The measurement data can be input into Excel or word for statistical analysis, and simple xbar-S control chart can be cut out, and various parameters such as Ca can be obtained;

7. Multi language interface switching;

8. Record user program, edit instruction and instruction execution;

9. The navigation function of big map, special stereo rotary lamp for tool mould, 3D scanning system, fast auto focus and automatic zoom lens;

10. It can be used to measure irregular products such as ellipse, radian and flatness; You can also use the probe to point and then import it into reverse engineering software for further processing!

11. The image measuring instrument can also detect the roundness, straightness and radian of the circular object;

12. Flatness detection: the flatness of workpiece is detected by laser probe;

13. Professional measurement function for gear

14. Special measurement function of test screen used in national major metrology institutes

15. Comparison function between drawings and measured data
