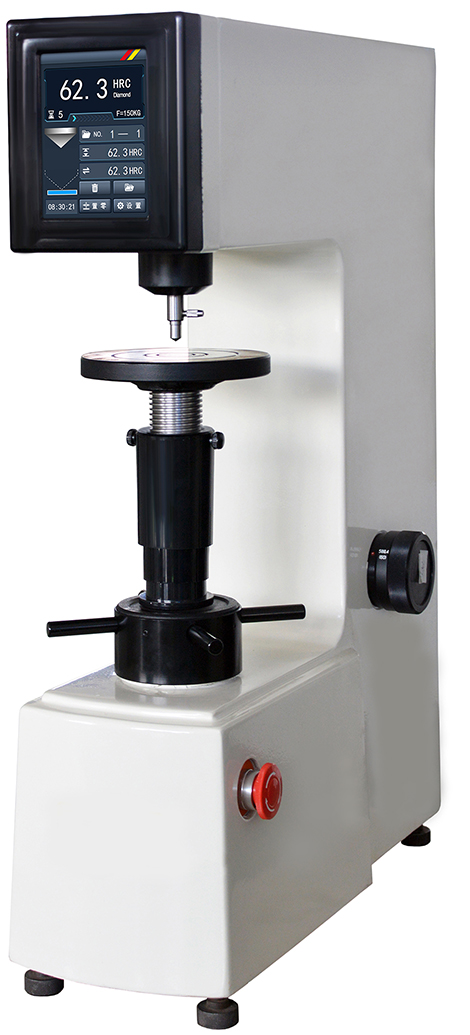

HR-150T Touch Screen Rockwell Hardness Tester

Category： Rockwell Hardness Tester
Views：1886
Product description：Touch Screen Rockwell Hardness Tester
Inquiry

HR-150T Rockwell Hardness Tester Description:

●HR-150T Digital Rockwell hardness tester adopts the high resolution color touch screen with high brightness display.

●It has a good reliability, excellent operation and easy watching, so it is a high-tech product combining the mechanic and electric features.
●It can show and set the present scale, test force, test indenter, dwell time and hardness conversion;
●The main function is as follows: Selection of all the Rockwell scales; Conversion scales of different kinds of hardness; Display backlight adjustable with energy-saving mode; Real time data saving in the folder, totally six folders, the data can be arbitrary deleted and printed out;
●Test results can be saved in real time with automatic calculation of maximum, minimum and average value;
●The interface is visual and clear, very easy to operate; With RS232 interface for connecting to the computer.
●Application range,Suitable for quenched steel, tempered steel, annealed steel, cold and hard casting, malleable cast iron, hard alloy steel, aluminum alloy, copper alloy, bearing steel etc.

HR-150T rockwell hardness tester Specification:

Model	HR-150T
Initial Test Force	10kgf (98.07N)
Total Test Force	60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Indenter	Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method	Automatic (Loading/Dwell/Unloading)
Hardness Reading	Touch Screen Display
Test Scale	HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV
Conversion Scale	HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Data Output	Built-in Printer，RS232 Interface
Resolution	0.1HR
Dwell Time	0~60s
Max. Height of Specimen	175mm
Throat	165mm
Power Supply	AC220V，50Hz
Execute Standard	ISO 6508，ASTM E-18，JIS Z2245，GB/T 230.2
Dimension	520×215×700mm，Packing Dimension: 650×370×950mm
Weight	Net Weight: 78kg，Gross Weight: 100kg

HR-150T Rockwell Hardness Tester Packing List:

Name	Qty	Name	Qty
Instrument Main Body	1 set	Diamond Rockwell Indenter	1 pc
ф1.588mmBall Indenter	1 pc	Middle Plane Test Table	1 pc
Large Plane Test Table	1 pc	V-shaped Test Table	1 pc
Hardness Block 60~70 HRC	1 pc	Hardness Block 20~30 HRC	1 pc
Hardness Block 80~100 HRB	1 pc	Weight A, B, C	3 pcs
Power Cable	1 pc	Fuse 2A	2 pcs
Level	1 pc	Horizontal Regulating Screw	4 pcs
Inner Hexagon Spanner	1 pc	Spanner	1 pc
Anti-dust Cover	1 pc	Usage Instruction Manual	1 copy
