Description:

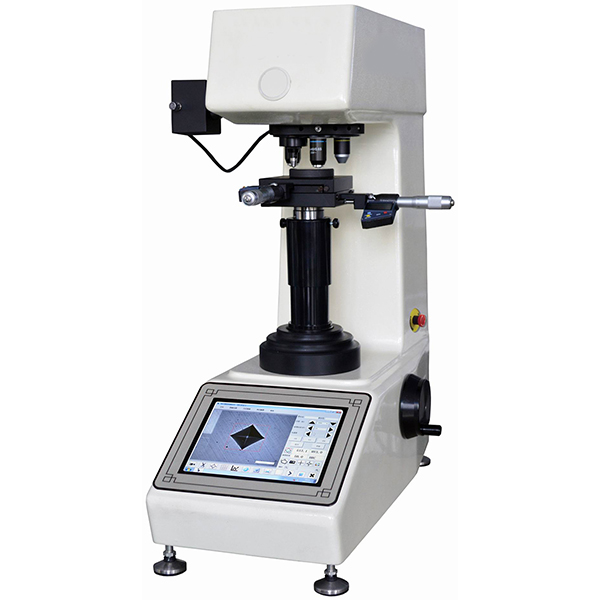

●This instrument is a new generation of Vickers hardness tester. It adopts the integrated design of hardness tester and computer;
●All the testing parameters can be selected on the panel computer. With touching screen, it operates quickly and conveniently and displays clearly and intuitively.
●With CCD image acquisition system, it can show dynamic indentation image, lock the image and automatically get the Vickers hardness value.
●With high measuring accuracy and stable performance, it avoids human errors and achieves advanced level.
●Integrated design of hardness tester and computer. With Windows 7 operating system, it has all functions of computer. It can also be connected to the monitor, printer and other output devices.
●With three measuring objectives, automatic recognition and shifting between the objective and the indenter. The lifting screw adopts the worm and gear structure for smooth transmission.
Test force application: automatic loading, dwelling and unloading.
●With the function of hardness scale conversion.
●It can automatically save the measuring data, generate the hardness-depth curve and save as WORD document.
●With built-in CCD image automatic measuring system, the indentation displays clearly and intuitively and the hardness value can be automatically got.
●Digital test stage makes the measurement more accurate, and it can be equipped with X-Y automatic test stage (optional) to realize the automation of Vickers hardness testing.
Specifications:
|
Product Name |
Intelligent Digital Vickers Hardness Tester |
||||
|
Model |
HVI-5A |
HVT-10A |
HVI-30A |
HVI-50A |
|
|
Testing Force |
Kgf |
0.3,0.5,1,2,2.5,3,5 |
0.3,0.5,1,2, 2.5,3,5,10 |
0.5,1,2,2.5,3,5,10,20,30 |
1,2,2.5,3,5,10,20,30,50 |
|
N |
2.94,4.9,9.8,19.6,24.5, 29.4,49.0 |
2.94,4.9,9.8,19.6,24.5,29.4,49.0,98 |
4.9,9.8,19.6,24.5,29.4,49.0,98,196,294 |
9.8,19.6,24.5,29.4,49.0,98, 196,294, 490 |
|
|
Testing Range |
8HV0.3~2900HV5 |
8HV0.3~2900HV10 |
8HV0.5~2900HV30 |
8HV1~2900HV50 |
|
|
Lens&Indenter Switch |
Auto-turret |
||||
|
Loading Control |
Automatic( Loading, Dwell and Unloading) |
||||
|
Microscope Magnification |
Observation:10x, Measurement:20x |
||||
|
Monitor Display |
10x |
||||
|
Objective |
10x,20x,40x |
||||
|
Min.Test Unit |
0.0625 μm, 0.125 μm, 0.25 μm |
||||
|
Dwell Time |
Adjustable 0~60s |
||||
|
Digital Camera Pixel |
1.3 million |
||||
|
Hardness Indication |
1HV/Computer Display |
||||
|
Illumination |
Adjustable LED |
||||
|
Max Test Height |
180mm |
||||
|
Test Throat |
130mm |
||||
|
Power Supply |
AC220V/50Hz;110V/60Hz |
||||
|
Dimensions |
560 x335 x635mm |
||||
|
Packing Dimensions |
630 x460 x710mm |
||||
|
Gross/Net Weight |
60/45kg |
||||
|
Execution Standard |
GB/T4340.2, EN-ISO6507, ASTME10-08, ASTME-384 |
||||
Standard Packing List:
●Vickers Indenter ●Built-in 10x Objective ●Built-in 20x Objective ●Built-in 40x Objective ●Digital X-Y Test Stage ●Vickers Hardness Block ●10x Digital Eyepiece●V-Shape Anvil ●Halogen Lamp ●Big Test Anvil ●Accessories Box ●Anti-dust Cover ●Level Screw/Fuse ●Instrument Manua/Power Cable ●Screwdriver/Spanner
Optional Accessories:
Optional Items
Optional Items
Optional Items
Knoop Indenter
Filament Clamp
Vickers measuring Software
Hardness Blocks
Flat Clamp
Capture Card and Dongle
Medium-Flat Anvil
Thin-piece Clamp
Metallographic Equipments
