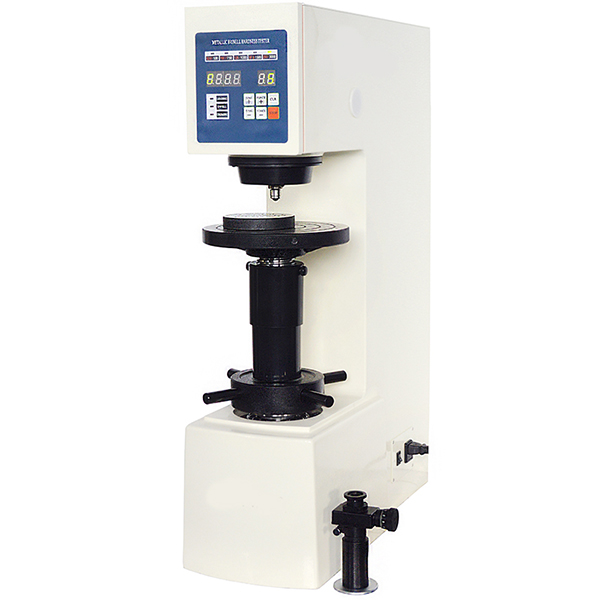

HB-3000E Instrument Description:
● HB-3000E is an affordable electronic Brinell testing machine with high accuracy, reliability and durability, it is applied at the workshops and measurement departments for determining the Brinell hardness of the material of ferrous and non-ferrous metals.
● HB-3000E adopts the pressure sensor to replace the traditional weight, this innovative design makes the instrument more accurate.
● HB-3000E selection of testing force and dwell time is controlled and monitored on the front panel, it is automatic during the process of loading, dwell and unloading.
● HB-3000E uses 20x Brinell measuring microscope to measure the diameter of indentation, then the operator traces the Brinell hardness table to get the testing result.
HB-3000E Technical Specifications:
|
Product Name |
Electronic Brinell Hardness Tester |
|
|
Model |
HB-3000E |
|
|
Testing Force |
62.5Kgf, 100Kgf, 125Kgf, 187.5Kgf, 250Kgf, |
|
|
612.9N, 980N, 1226N, 1839N, 2452N, |
||
|
Testing Range |
(8~650) HBW |
|
|
Hardness Display |
Check the Table of Brinell Hardness Scale |
|
|
Magnification of Microscope |
20x Mechanic Microscope |
|
|
Dwell Time |
0~60s |
|
|
Max. Height Of Specimen |
225mm |
|
|
Instrument Throat |
135mm |
|
|
Power Supply |
AC220V/50Hz;110V/60Hz |
|
|
Dimension(LxWxH) |
893 x720 x747mm |
|
|
Gross/Net Weight |
160Kg/130Kg |
|
|
Execution Standard |
GB/T231.2, JJG150, EN-ISO 6506 |
|
|
Accuracy of Brinell Hardness Testing |
||
|
Hardness Range |
Max. Tolerance |
Repetition |
|
HBW≤ 125 |
≤± 3.5％ |
≤ 3.5％ |
|
125＜HBW≤225 |
≤± 2.5％ |
≤ 3.0％ |
|
HBW＞ 225 |
≤± 2.0％ |
≤ 2.5％ |
HB-3000E Standard Packing List:
|
Instrument Main Body |
Ø5mm Ball Indenter |
Power Cable |
|
20x Mechanic Microscope |
Ø2.5mm Ball Indenter |
Accessories Box |
|
Hardness Block HBW/3000/10 |
Ø 200mm Flat Anvil |
Anti-dust Cover |
|
Hardness Block HBW/750/05 |
Ø 60mm Flat Anvil |
Level Screw/Fuse |
|
Ø10mm Ball Indenter |
Ø 80mm V-shape Anvil |
Instrument Manual |
HB-3000E Optional Accessory:
|
Optional Items |
Optional Items |
Optional Items |
|
Brinell Measuring Software |
Brinell Indenter |
Mini-printer |
|
Computer |
Hardness Blocks |
Metallographic Equipments |
