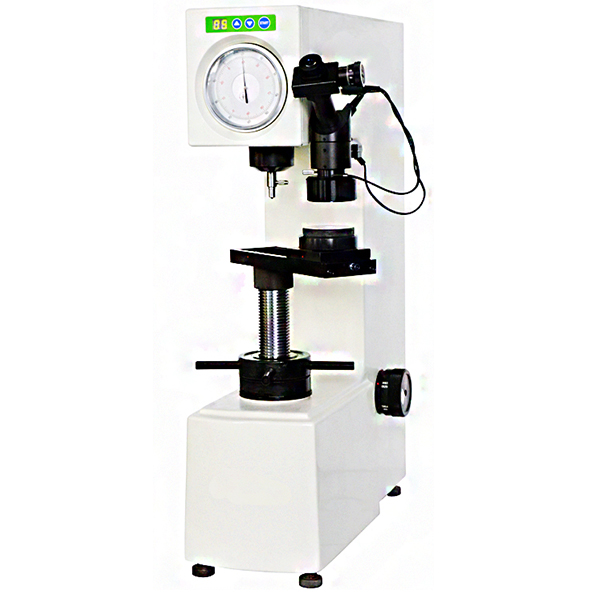

● HBRV-187.5E is a universal hardness testing instrument for the measurement of Brinell, Rockwell and Vickers scale.
● HBRV-187.5E equip 7-testing-foce and 5-indenter, it is universal to measure a lot of material.
● HBRV-187.5E dwell time from 1 to 60S can be setup by the “time key” on the panel, it is much convenient than the setup on the manual hardness tester;
● HBRV-187.5E force knob adopts the metal material to replace the plastic, it improves the instrument using-life greatly.
● HBRV-187.5E loading, dwell and unloading is driven by electronic motor automatically, doesn’t need the operator to handle it, it eliminates the human operating error maximum.
HBRV-187.5E Electric Universal hardness tester Specifications:
|
Product Name |
Electric Universal Hardness Tester |
|
Model |
HBRV-187.5E |
|
Rockwell Scales |
HRA, HRB, HRC |
|
Rockwell Testing Force |
60Kgf(588.4N)、100Kgf(980.7N)、150Kgf(1471N) |
|
Brinell Scales |
HBW1/30、HBW2.5/62.5、HBW10/100、HBW2.5/187.5 |
|
Brinell Testing Force |
31.25Kgf(306.5N)、62.5Kgf(612.9N、187.5Kgf(1839N) |
|
Vickers Scales |
HV 30、HV100 |
|
Vickers Testing Force |
30Kgf(294.2N)、100Kgf(980.7N) |
|
Rockwell Hardness Indication |
Analogue Display |
|
Rockwell Resolution |
0.5HR |
|
Loading Control |
Automatic |
|
Magnification of Microscope |
Brinell:37.5x; Viceers:75x |
|
Dwell Time |
2~60s |
|
Max. Height Of Specimen |
Rockwell:170mm; Brinell, Vickers:140mm |
|
Instrument Throat |
165mm |
|
Dimension(LxWxH) |
520 x215 x700mm |
|
Packing Dimension |
630 x440 x960mm |
|
Gross/Net Weight |
120Kg/90Kg |
|
Execution Standard |
GB/T230.2, JJG112, EN-ISO 6508 , ASTME-18 |
HBRV-187.5E Electric Universal Hardness Tester Standard Packing List:
|
Packing List |
Packing List |
Packing List |
|
Hardness Block (57-70)HRC |
Ø2.5mm Brinell Ball Indenter |
15x analogue Eyepiece |
|
Hardness Block (20-33)HRC |
Ø5mm Brinell Ball Indenter |
2.5x Brinell Objective |
|
Hardness Block (85-100)HRB |
Rockwell Cone Diamond Indenter |
5x Vickers Objective |
|
Vickers Hardness Block HV 30 |
Vickers Indenter |
Power Cable |
|
HBW2.5/187.5 Hardness Block |
Ø 150mm Flat Anvil/Ø 55mm Flat Anvil |
Accessories Box |
|
Ø1.588mm Rockwell Ball Indenter |
Ø 55mm V-shape Anvil |
Instrument Manual |
HBRV-187.5E Electric Universal Hardness Tester Optional Accessory:
|
Optional Items |
Optional Items |
Optional Items |
|
Hardness Measuring Software |
Hardness Blocks |
Hardness Indenters |
|
Computer |
Metallographic Equipments |
/ |
