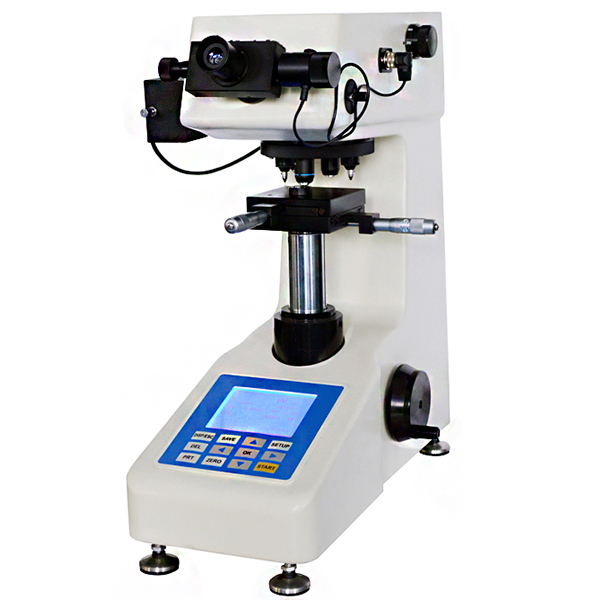

MVK-1000A Micro Knoop hardness tester Instrument Description:
●MVK-1000A is a precision micro Vickers hardness testing machine integrated the technology of advanced optics, mechanics and computer.
●MVK-1000A with Dual Indenter ,Vikcers indenter and Knoop Indenter
●MVK-1000A s equipped with a large LCD screen, the operation is more directly and clearly.
●MVK-1000A can display the measuring methods, testing force, indentation length, hardness value, dwell time of the testing force as well as the number of measurement.
●MVK-1000A can save and revise the date, record the measuring results, compute the data, outputting the information with the printer.
●MVK-1000A hardness conversion among 17 hardness scales, and linking to PC in RS 232 interface and cable.
MVK-1000A Micro Knoop Hardness Tester Technical Specifications:
|
Product Name |
Digital Auto-turret Micro Vickers Hardness Tester |
|
|
Model |
MVK-1000A |
|
|
Testing Force |
gf |
10、25、50、100、200、300、500、1000 |
|
N |
0.098、0.246、0.49、0.98、1.96、2.94、4.90、9.80 |
|
|
Indentation Measurement |
Digital Encoder Measurement |
|
|
Test Mode |
Vickers/Knoop |
|
|
Output Data |
Rs232/Mini-printer |
|
|
Loading Control |
Automatic (Loading, Dwell, Unloading) |
|
|
Magnification of Microscope |
Observation:10x; Measurement:40x |
|
|
Magnification on of Eyepiece |
10x Eyepiece |
|
|
Dwell Time |
Adjustable 5~60s |
|
|
Testing Range |
1HV~2967HV |
|
|
Auto Hardness Conversion |
HRA ,HRB,HRC,HV,HK,HBW etc |
|
|
X-Y Anvil |
Size:100x100mm; Travel:25 x25mm; Resolution:2um |
|
|
Illumination |
Halogen light-source |
|
|
Max. Height of Specimen |
100mm |
|
|
Instrument Throat |
98mm |
|
|
Power Supply |
AC220V/50Hz;110V/60Hz |
|
|
Dimension(LxWxH) |
480 x305x545mm |
|
|
Packing Dimension |
500 x 490 x 700mm |
|
|
Gross/Net Weight |
45Kg/35Kg |
|
|
Execution Standard |
GB/T4340.2, EN-ISO6507, ASTME10-18, ASTME-384 |
|
MVK-1000A Micro Knoop Hardness Tester Standard Packing List:
|
Packing List |
Packing List |
Packing List |
Packing List |
|
Vickers Indenter |
Objectives 40x |
Accessories Box |
Weights |
|
Hardness Block HV0.2 |
Objectives 10x |
Anti-dust Cover |
Thin-piece Clamp |
|
Hardness Block HV1 |
X-Y Anvil/Mini-printer |
Level Screw |
Filament Clamp |
|
Fuse/Power Cable |
Eyepiece10x |
English Manual |
Flat Clamp |
|
Knoop Block |
Knoop Indenter |
Halogen lamp |
Gradienter |
